Vehicle Info NeededSRPPART NUMBER: 867-138093

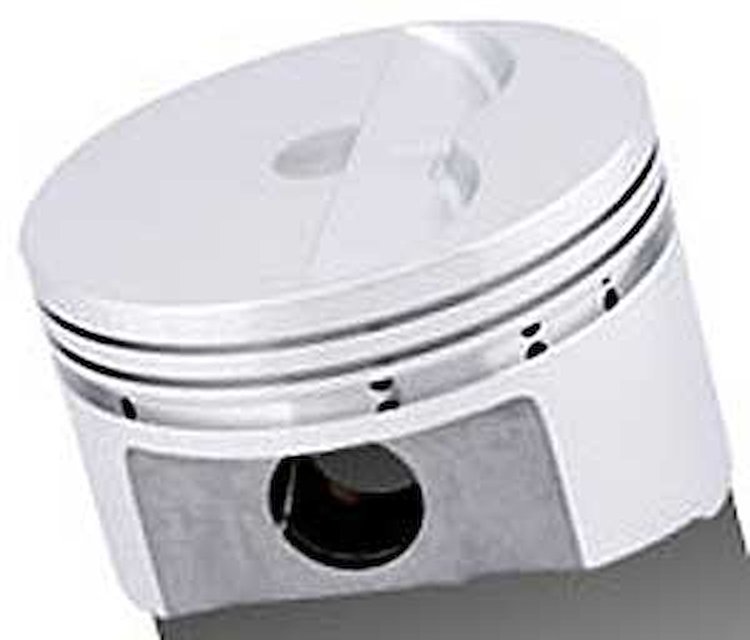

Flat Top Forged Pistons Bore: 4.030"
$65699
Ships on 09/23/2026
Lowest Price GuaranteeChevy 350Rod:6.000 in. Stroke: 3.750 in.
- Flat Top Forged Pistons
- Bore: 4.030"
- 8/pkg
Compression Ratios - 58cc: 11.8 to 1
- 64cc: 11.0 to 1
- 70cc: 10.3 to 1
- 76cc: 9.7 to 1
Part TypePiston
BrandSRP
Package Height6.3
Package Width11.9
Package Length12.1
Weight12.27 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)5
Compression Distance1.125 in (28.575 mm)
Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
Wrist Pin StylePress-fit or floating
QuantitySold as a set of 8
Piston MaterialForged aluminum
Pin Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Bore (Mm)102.362
Piston StyleFlat top, with two valve reliefs
Bore4.03 in (102.362 mm)
Vendor Part Number138093
Package Qty1
Package TypeEA
