Vehicle Info NeededSRPPART NUMBER: 867-139626

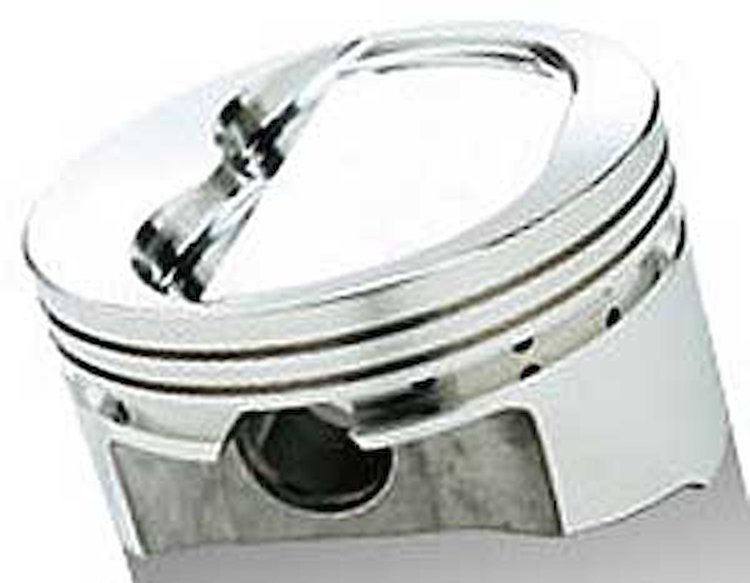

SRP Inverted Dome Pistons for Small Block Chevy 400 Bore 4.165"
$73499
Ships on 09/30/2026
Lowest Price GuaranteeSRP Inverted Dome PistonsSmall Block Chevy 400 (+.040") Bore: 4.165" Stroke: 3.750 (409ci) Rod Length: 5.700" Dome Volume: -21cc Weight: 489 grams Compression Height: 1.425" 1/pkg
400 Block with 3.750" Stroke
Compression Ratios
- 58cc 10.4:1
- 64cc 9.8:1
- 70cc 9.2:1
Ring Groove Sizes
- Top Ring: 1/16"
- Second Ring: 1/16"
- Oil Ring: 3/16"
- Inverted dome utilizes radius tooling to eliminate hot spots. Symmetrical valve reliefs for universal installation. Valve reliefs cut for oversized valves and most street/strip camshafts. Lower ring lands and thicker crown for increased durability. High silicon alloy for tighter piston to wall clearance. Can be used in small blower and nitrous applications. .927'' x 2.750'' x .150'' straight wall carbon steel wristpin (130g) included. 1/16, 1/16, 3/16'' ring grooves.
Part TypePiston
Product LineSRP SB-Chevy Low Compression Forged Pistons
BrandSRP
Package Height5.9
Package Width11.2
Package Length25.3
Weight14.89 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number139626
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
