SRP Dome Pistons for Small Block Chevy Bore 4.040"
InfoVehicle Info Needed
SRPPART NUMBER: 867-140345

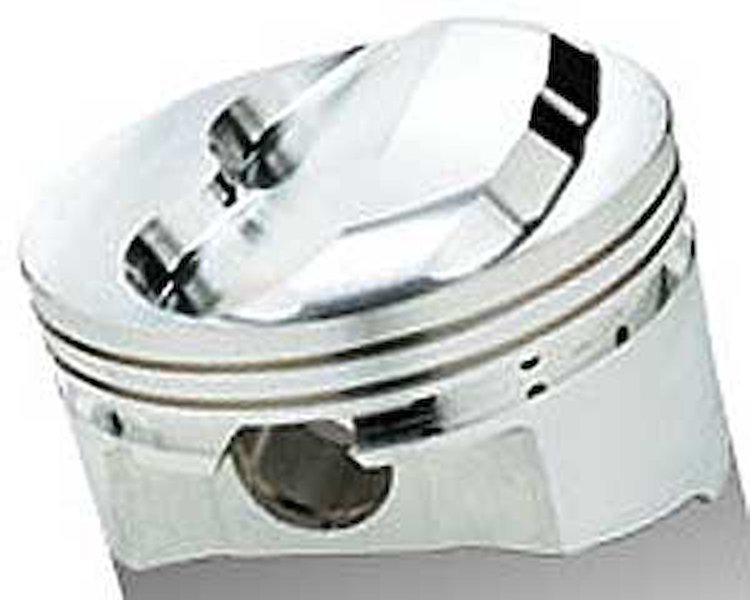

SRP Dome Pistons for Small Block Chevy Bore 4.040"

$73499
ShippingShips on 12/15/2026
Lowest PriceLowest Price Guarantee

350 Block with 3.750" Stroke
SRP Inverted Dome Pistons
  • Small Block Chevy (+.040")
  • Bore: 4.040"
  • Stroke: 3.750 (385ci)
  • Rod Length: 5.700"
  • Dome Volume: 7cc
  • Weight: 488 grams
  • Compression Height: 1.425"
  • 8/pkg

    Compression Ratios

    • 58cc 14.1:1
    • 64cc 12.9:1
    • 70cc 11.9:1

      Ring Groove Sizes
    • Top Ring: 1/16"
    • Second Ring: 1/16"
    • Oil Ring: 3/16"
    • SRP Small Block Chevy High Compression Forged Pistons are smooth flowing symmetrical dome for excellent flame propogation. Dome requires no de-burring or preparation. Designed for use in all common 23° heads. Non-silicon alloy for superior strength in high cylinder pressure applications. Symmetrical dome and valve reliefs for universal installation. .927'' x 2.750'' x .150'' straight wall carbon steel wristpin (130g) included. 1/16, 1/16, 3/16'' ring grooves.

    Part TypePiston
    Product LineSRP Small Block Chevy High Compression Forged Pistons
    BrandSRP
    Package Height6.1
    Package Width11.3
    Package Length25.3
    Weight14.9 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number140345
    Package Qty1
    Package TypeEA
