Vehicle Info NeededSRPPART NUMBER: 867-140348

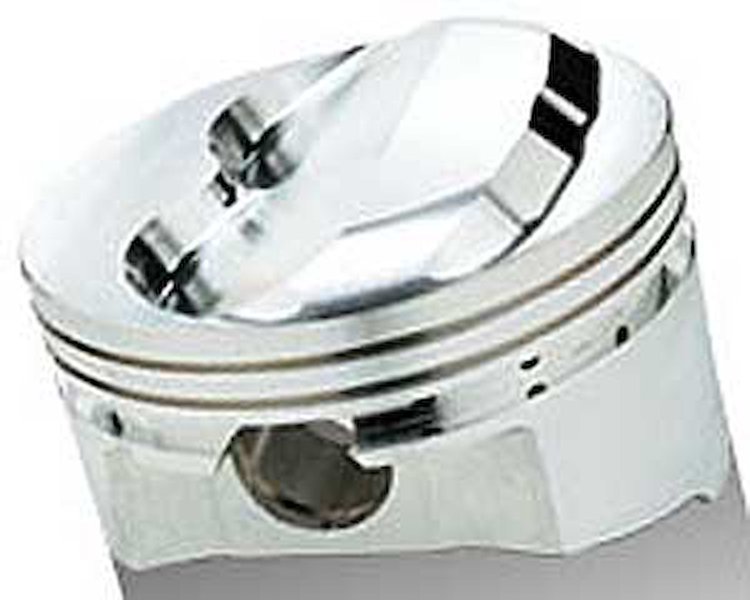

SRP Dome Pistons for Small Block Chevy Bore 4.030"
$69999
Ships on 09/24/2026
Lowest Price Guarantee350 Block with 3.750" Stroke
SRP Inverted Dome Pistons Small Block Chevy (+.030") Bore: 4.030" Stroke: 3.750 (383ci) Rod Length: 6.000" Dome Volume: 7cc Weight: 426 grams Compression Height: 1.125" 8/pkg
Compression Ratios
- 58cc 14.0:1
- 64cc 12.9:1
- 70cc 11.9:1
Ring Groove Sizes - Top Ring: 1/16"
- Second Ring: 1/16"
- Oil Ring: 3/16"
SRP Small Block Chevy High Compression Forged Pistons are smooth flowing symmetrical dome for excellent flame propogation. Dome requires no de-burring or preparation. Designed for use in all common 23° heads. Non-silicon alloy for superior strength in high cylinder pressure applications. Symmetrical dome and valve reliefs for universal installation. .927'' x 2.750'' x .150'' straight wall carbon steel wristpin (130g) included. 1/16, 1/16, 3/16'' ring grooves.
Part TypePiston
Product LineSRP Small Block Chevy High Compression Forged Pistons
BrandSRP
Package Height6.1
Package Width11.8
Package Length12.0
Weight12.09 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)-7
Compression Distance1.125 in (28.575 mm)
Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
Wrist Pin StylePress-fit or floating
QuantitySold as a set of 8
Piston MaterialForged aluminum
Pin Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Bore (Mm)102.362
Piston StyleDome, with two valve reliefs
Bore4.03 in (102.362 mm)
Vendor Part Number140348
Package Qty1
Package TypeEA
