Made in USA

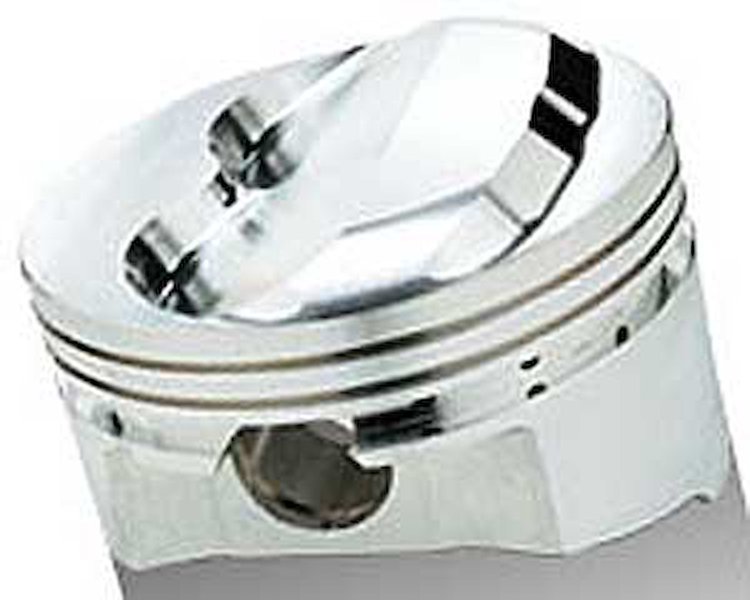

SRP Dome Pistons for Small Block Chevy Bore 4.040"
InfoVehicle Info Needed
SRPPART NUMBER: 867-140675

SRP Dome Pistons for Small Block Chevy Bore 4.040"

$73499
ShippingShips on 09/24/2026
Lowest PriceLowest Price Guarantee

350 Block with 3.480" Stroke
SRP Inverted Dome Pistons
  • Small Block Chevy (+.040")
  • Bore: 4.040"
  • Stroke: 3.480 (357ci)
  • Rod Length: 5.700"
  • Dome Volume: 11cc
  • Weight: 511 grams
  • Compression Height: 1.560"
  • 8/pkg

    Compression Ratios

    • 58cc 14.1:1
    • 64cc 12.8:1
    • 70cc 11.7:1

      Ring Groove Sizes
    • Top Ring: 1/16"
    • Second Ring: 1/16"
    • Oil Ring: 3/16"
    • SRP Small Block Chevy High Compression Forged Pistons are smooth flowing symmetrical dome for excellent flame propogation. Dome requires no de-burring or preparation. Designed for use in all common 23° heads. Non-silicon alloy for superior strength in high cylinder pressure applications. Symmetrical dome and valve reliefs for universal installation. .927'' x 2.750'' x .150'' straight wall carbon steel wristpin (130g) included. 1/16, 1/16, 3/16'' ring grooves.

    Part TypePiston
    Product LineSRP Small Block Chevy High Compression Forged Pistons
    BrandSRP
    Package Height5.9
    Package Width11.2
    Package Length25.2
    Weight14.7 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number140675
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
