SRPPART NUMBER: 867-140690

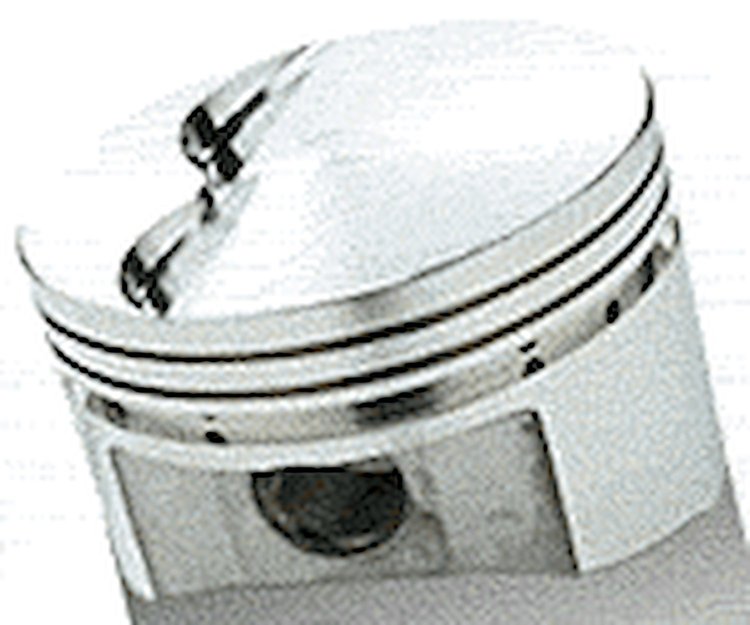

4.040" Bore (431 grams)
$73499
1 left in stock302 Stroker Specs: Dome vol. -5cc, Oil rail support & .927'' x 2.750'' x .150'' wristpin (130g) included.
C/R: 54cc - 11.5:1; 58cc - 10.9:1; 62cc - 10.4:1; 66cc -9.9:1. 1.100'' C/H, 5.400'' Rod, 3.400'' Stroke (302 stroker). 8/pkg.
C/R: 54cc - 11.5:1; 58cc - 10.9:1; 62cc - 10.4:1; 66cc -9.9:1. 1.100'' C/H, 5.400'' Rod, 3.400'' Stroke (302 stroker). 8/pkg.
4.040'' Bore (431 grams)
SRP 867-140690 Features:
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.- < ul>< li> Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion < li> Dedicated forging helps optimize strength and weight throughout the piston design< li> Perfect for street/strip applications< li> Forced pin oiling for improved pin lubrication< li> Made 100% in the USA
- Features
- Dome Volume: -5cc
- Ring Grooves: 1/16", 1/16", 3/16"
- Ideal for street/strip and oval track
- Can be used in small blower & nitrous applications
- High-silicon alloy for tighter piston-to-wall clearance
- Straight wall carbon steel wristpins included
Part TypePiston
Product LineSRP Small Block Ford Flat Top Forged Pistons
BrandSRP
Package Height6.1
Package Width11.3
Package Length25.3
Weight13.0 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedNo
Compression Height1.1 in (27.94 mm)
Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
Part FitmentSemi Universal
Wrist Pin IncludedNo
ToolStroker Combinations
Vendor Part Number140690
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
