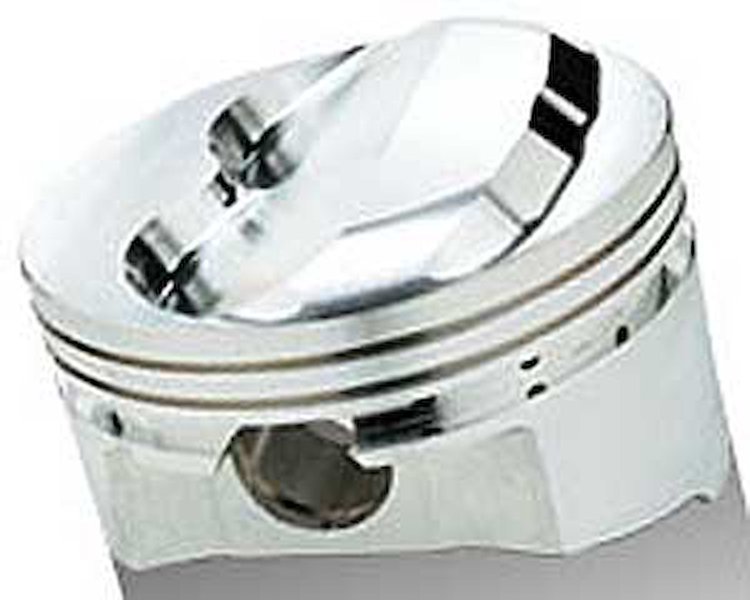

Dome Forged Pistons for Small Block Chevy Bore 400 4.155"
InfoVehicle Info Needed
SRPPART NUMBER: 867-142024

Dome Forged Pistons for Small Block Chevy Bore 400 4.155"

$73499
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Items You Need

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00
Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90

400 Block with 3.750" Stroke
Dome Forged Pistons
  • Small Block Chevy 400 (+.030")
  • Bore: 4.155"
  • Stroke: 3.750 (407ci)
  • Rod Length: 6.000"
  • Dome Volume: 4cc
  • Weight: 445 grams
  • Compression Height: 1.125"
  • 8/pkg

    Compression Ratios

    • 58cc 14.0:1
    • 64cc 12.9:1
    • 70cc 11.9:1

      Ring Groove Sizes
    • Top Ring: 1/16"
    • Second Ring: 1/16"
    • Oil Ring: 3/16"
    • SRP Small Block Chevy High Compression Forged Pistons are smooth flowing symmetrical dome for excellent flame propogation. Dome requires no de-burring or preparation. Designed for use in all common 23° heads. Non-silicon alloy for superior strength in high cylinder pressure applications. Symmetrical dome and valve reliefs for universal installation. .927'' x 2.750'' x .150'' straight wall carbon steel wristpin (130g) included. 1/16, 1/16, 3/16'' ring grooves.

    Part TypePiston
    Product LineSRP Small Block Chevy High Compression Forged Pistons
    BrandSRP
    Package Height6.3
    Package Width11.8
    Package Length11.9
    Weight12.83 PG
    Part CategoryPerformance Parts
    Piston Head Volume (Cc)-4
    Compression Distance1.125 in (28.575 mm)
    Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
    Wrist Pin StylePress-fit or floating
    QuantitySold as a set of 8
    Piston MaterialForged aluminum
    Pin Diameter0.927 in (23.5 mm)
    Part FitmentSemi Universal
    Bore (Mm)105.537
    Piston StyleDome, with two valve reliefs
    Bore4.155 in (105.537 mm)
    Vendor Part Number142024
    Package Qty1
    Package TypeEA
