SRPPART NUMBER: 867-149607

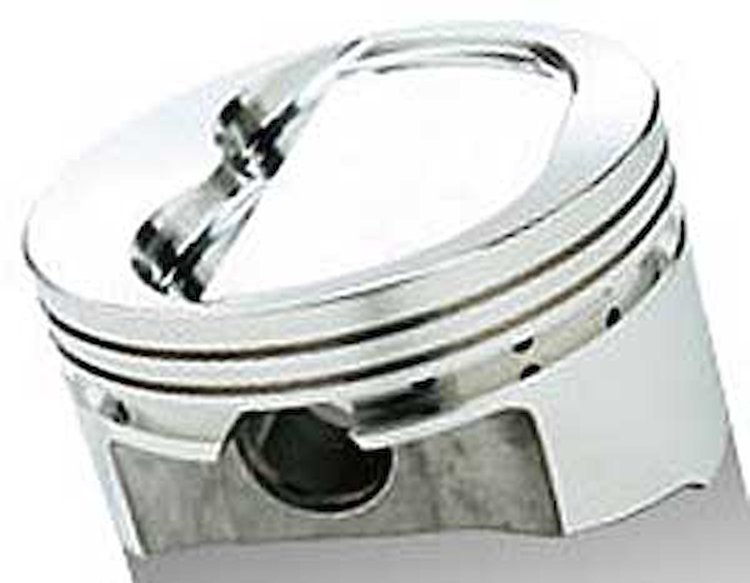

Forged Dish Pistons for Small Block Ford 351W
$78799
351W Block3.500" Stroke
Forged Dish Pistons Small Block Ford 351W Bore: 4.040" (359ci) Stroke: 3.500" Rod: 5.956" Volume: -14cc Weight: 519 grams 8/Pkg
Notes:
- Recommended Ring Set: 867-S100S8-40405
- Ring Size: 1/16", 1/16", 3/16"
- Compression Height: 1.784"
- Block Height: 9.490"
- Pin Diameter: .912"
Compression Ratios:
- 58cc Heads: 9.8
- 64cc Heads: 9.2
- 70cc Heads: 8.7
Inverted dome (dish) utilizes radius tooling to eliminate hot spots. Manufactured using 4032 low expansion high silicon aluminum that is heat treated for tighter piston to wall clearance. Valve reliefs cut for oversized valves and most street/strip camshafts. Lower ring lands and thicker crown for increased durability. CNC machined ring grooves accept 1/16", 1/16", 3/16" thick rings (sold separately).
Show More
- FitsFord TFS, GT40, Canfield, Brodix Track I, OE, and Dart Windsor Cylinder Heads
- Does not fitTwisted Wedge, N351, or Edelbrock 7721
Part TypePiston
Product LineSRP Small Block Ford Forged Dish Pistons
BrandSRP
Package Height6.0
Package Width11.3
Package Length25.3
Weight14.35 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number149607
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
