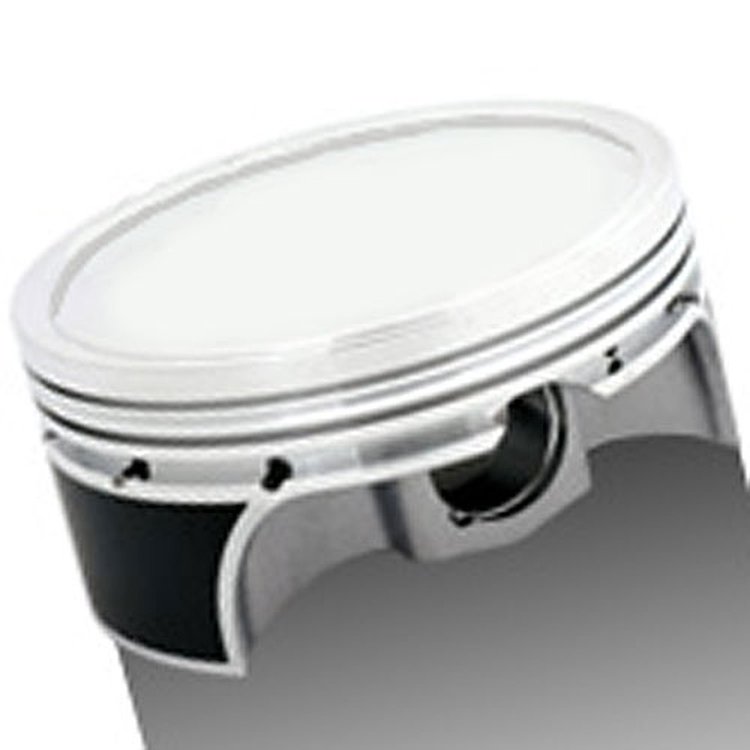

PRO SERIES 355/383 SBC Inverted Dome Top
Product Discontinued
SRPPART NUMBER: 867-271061

PRO SERIES 355/383 SBC Inverted Dome Top

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy 350 23 Degree Inverted Dome Top
    PRO SERIES 355/383 SBC
  • Inverted Dome Top
  • Bore: 4.030"
  • Stroke: 3.480" 355/3.750" 383
  • Rod Length: 6.125" 355/6.000" 383
  • Compression Distance: 1.125"
  • Dome Volume: -16cc
  • Gram Weight: 376

  • Compression Ratio: 58cc 9.8 355/10.4 383, 64cc 9.2 355/9.8 383, 70cc 8.7 355/9.3 383

    Footnotes
  • Fits 3.480" and 3.750" Stroke
  • Oil Rail Support is Included

"The most advanced piston package for your engine"

SRP Professional pistons include features used in professional racing such as lightweight forged side relief (FSR) forgings, high quality wrist pins, and precision CNC machined ring grooves and skirts. Additionally all Professional Series pistons include a skirt coating and JE Pro Seal Premium Piston Rings at no additional charge. The included ring set features a 1.2 premium steel top ring, 1.5mm Napier (hooked face) second ring and 3.0mm standard tension oil ring. Every piston is designed and manufactured in the USA at the advanced JE/SRP Pistons manufacturing center. The piston designs were created using 3D computer modeling and tested for strength using Finite Element Analysis (FEA).

Show More



Piston Features

  • Advanced, lightweight FSR forging that eliminates stress concentrations for superior strength
  • Up to 20% lighter than traditional equivalent
  • High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation
  • Accumulator grooves for improved ring seal
  • Designed for normally aspirated or moderate forced induction/nitrous applications
  • Includes high performance skirt coating



    Piston Ring Features
  • Lightweight, low friction metric ring package included
  • 1.2mm top ring, 1.5mm Napier 2nd ring, 3.0mm standard tension oil ring
  • Napier 2nd ring for improved oil control
  • Minimal filing required



    Piston Pin Features
  • High quality 2.250" pin further reduces reciprocating weight
  • Carbon steel wire locks included
Part TypePiston
Product LineSRP Professional Series Pistons With Rings
BrandSRP
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number271061
Package Qty1
Package TypeEA
