Vehicle Info NeededSTEWART WARNERPART NUMBER: 728-439361-F

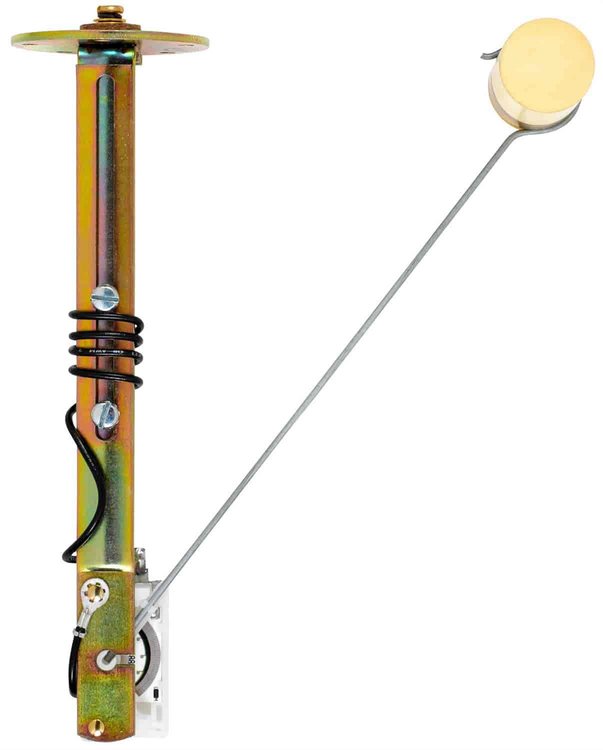

Thick Film Float Arm Fuel Level Sender, 10 in.-15 in. Tank Depth
$6399
Ships on Nov 11, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
Fuel Level Senders
Thick Film Float Arm Fuel Level SenderFor 10 in.-15 in. Tank Depth 0-90 Ohms Left Hand (LH) Flange Position SAE 5-Hole Mount Stud Terminal Ground Connector Zinc Dichromate Finish Sold Individually
439361-F Features:
- Reliability for more than 20-million cycles
- A Phosphor bronze wiper with nickel-silver contact provides extended life under fuel sloshing, vibration, and dither conditions
- The extended float arm support is resistant to side-to-side movement from fuel slosh
- The Solid Lifecell float will not sink
- Copper alloy hardware is used throughout for extra durability
Note:
- For use with gasoline or diesel fuels only
- Fuel Level Sender Installation Kit 728-366LP-F can be used if needed (sold separately)
Gauge Installation and Replacement Components
Stewart Warner offers various sensors, senders, switches, panels, light kits, and more to ease the addition or the servicing of existing gauges in your vehicle. Each component performs with great accuracy and reliability to provide years of service.
Part TypeFuel Sender and Hanger Assembly
Product LineStewart Warner Gauge Sensors, Senders, and Installation Accessories
BrandSTEWART WARNER
Package Height2.8
Package Width5.0
Package Length16.1
Weight0.6 PG
Part CategoryPerformance Parts
QuantitySold individually
Vendor Part NumberM-439361-F
Package Qty1
Package TypeEA
