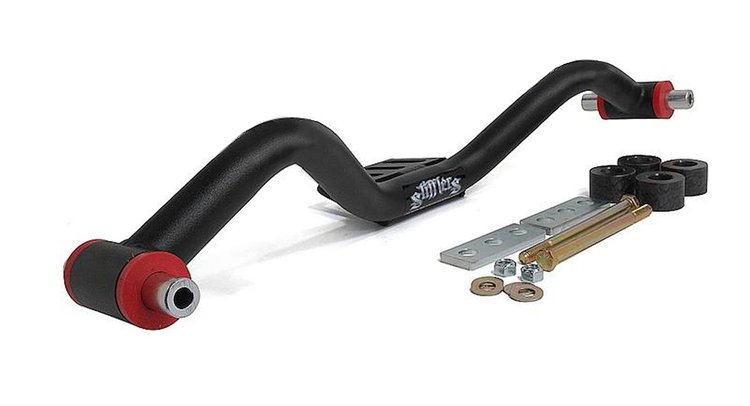

TCB-M02 Transmission Crossmember for 1982-1993 Ford Mustang, Fits ALL T45 & T56 / TR3650 & TH400 (Req adaptor P/N: TM-M02)
InfoVehicle Info Needed
STIFFLERS SUSPENSIONPART NUMBER: 483-TCB-M02

TCB-M02 Transmission Crossmember for 1982-1993 Ford Mustang, Fits ALL T45 & T56 / TR3650 & TH400 (Req adaptor P/N: TM-M02)

$18995
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Low-Profile Transmission Jack 1000 lb. Capacity

JEGS

Low-Profile Transmission Jack 1000 lb. Capacity

Part Number : 555-79012
$12299$225.99
You Save$103.00
Ball Joint Service Kit [20-Piece Set]

JEGS

Ball Joint Service Kit [20-Piece Set]

Part Number : 555-80639
$8279$149.99
You Save$67.20
Front End Service Kit

JEGS

Front End Service Kit

Part Number : 555-80624
$8399$100.99
You Save$17.00
3-Drawer Rolling Tool Box Seat

JEGS

3-Drawer Rolling Tool Box Seat

Part Number : 555-81155
$5999$109.99
You Save$50.00

Ford
Transmission Crossmember
  • 1982-1993 Ford Mustang
  • Fits ALL T45 & T56 / TR3650 & TH400 (Req adaptor P/N: TM-M02)

    Stifflers Suspension TCB-M02 Features:

    Putting a T-45, T-56 (includes Magnum & XL), TR-3650 or TH-400 in your Fox? We have the Crossmember for you! A direct fit for upgrading your Fox to a T-45, T-56, T-56 Magnum, T-56XL (Magnum XL must use Ford OEM offset transmission mount - F6ZZ-6068-A), TR-3650 or TH-400 transmission (TH-400 requires additional spacing due to a shorter mounting pad height. Use Stifflers adapter - TM-M02 and transmission mount - 300-ES31108G). This unique single tube design adds stiffness and strength far beyond that of the OEM versions while offering versatility like no other. Simply slide the mounting sleeves and reposition the spacers to cover your application. The crossmember is engineered to work with OEM and aftermarket transmission mounts; all while maintaining your current pinion angle. Low deflection polyurethane bushings are used in the mounts to dampen driveline vibrations and noise. For racing applications the polyurethane bushings can be replaced with optional solid bushings.

    • Single tube design for maximum stiffness without excess weight.
    • Easily adjust for T-45, T-56, T-56 Magnum, T-56 (XL), TR-3650 & TH-400 transmissions.
    • Uses factory located 4.5in wide body mounts, no relocation required.
    • Engineered to maintain pinion angle when using either OEM or aftermarket transmission mounts
    • Allows more exhaust clearance than OEM style.
    • Supplied with polyurethane bushings or can be replaced with solid mounting bushing for racing applications.
    • Bolster Your Transmission

      Stifflers Transmission Crossmembers feature a robust single-tube design that provides superior stiffness and strength compared to OEM versions, while delivering unmatched versatility. Engineered to work with both OEM and aftermarket transmission mounts, they maintain your current pinion angle for seamless integration. Low-deflection polyurethane bushings help reduce driveline vibrations and noise, with optional solid bushings available separately for racing applications.

    Part TypeTransmission Crossmember
    Product LineStifflers Suspension Transmission Crossmembers and Bushings
    BrandSTIFFLERS SUSPENSION
    Package Height4.5
    Package Width8.2
    Package Length28.3
    Weight6.82 PG
    Part CategoryPerformance Parts
    Part FitmentDirect Fit
    Vendor Part NumberTCB-M02
    Package Qty1
    Package TypeEA
