The ordering process is simple. Just print out the custom axle order form and fill it out with your specs. Once the order form is completely filled out, you can either mail, fax or email us with your information and then we'll take it from there. Our fax and phone numbers along with mailing information are on the order form.

Strange Engineering prides itself on supplying the best product for your application. Therefore, when manufacturing axles it is necessary to manufacture two types of axles; induction hardened S/S & S/T Series Axles and thru-hardened Pro Race Axles. Every Strange axle is manufactured by Strange Engineering from superior grade forgings. S/S & S/T axles are produced from 1550 steel that has been modified to Strange Engineering specifications. Pro Race Axles are made from Hy-Tuf, which is a high nickel Ultra-Strength steel. S/S, S/T and Pro Race axles are all NHRA & IHRA accepted.

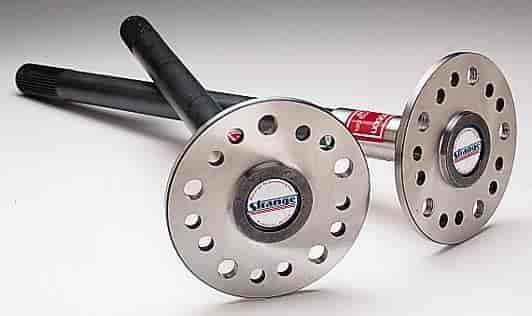

S/S Axles

Strange S/S axles are designed to meet the demanding bending loads of street use. Strange S/S axles are manufactured by Strange from modified 1550 steel. After extensive research and testing, Strange's R&D department determined that 1550 steel in conjunction with specified percentages of additional elements created the bases for the strongest induction hardened axles available. Each S/S street axle is induction hardened to its optimal hardness with Strange designed tooling. S/S splines are hobbed to the proper involute spline form- before heat treatment. The S/S's giant 1.5635" axle bearing diameter and bearing shoulder radius is precisely machined to accept a special radius ring, which minimizes stress concentrations in the bearing area. Strange provides a billet aluminum brake register to properly locate the center of your disc/drum brake system. Strange does manufacture Ford 9" 28-spline axles (that are stronger than OEM) for low horsepower and lightweight street-rod applications. However, 28-spline S/S axle shafts are significantly (38%) torsionally weaker in comparison to 31-spline S/S axles. So we strongly recommend you upgrade to 31-spline axle shafts for street applications.

S/S Axles are available for 9" 31-spline, as well as limited applications for 9" 28-spline, 9" 33-spline, Mopar 8.75" 30-spline, GM 30 & 33-spline. 5/8" wheel studs available at an additional cost.

S/T Axles

Strange S/T Series 35-spline axles are designed to meet the rigorous loads of street and strip use. S/T Series axles are identical to S/S axles in everyway except for the massive 1.50" (35-spline) shaft diameter. S/T axles carry a Strange Engineering three year replacement guarantee against spline breakage.

S/T Axles are available for 9" 35-spline (must use 3.250" carrier) as well as limited applications for Dana 60 and Mopar 8.75". 5/8" wheel studs available at an additional cost.

Pro Race Axles

Designed for drag race applications

• Involuted splines for increased strength
• Forged from Hy-Tuf for optimal grain structure
• Thru-hardened for superior torsional strength
• NHRA & IHRA contingency programs available
• Five year replacement guarantee for 33- & 35-spline axles
• 5/8" wheel studs available at an additional cost

Strange Pro Race axles are forged from Hy-Tuf alloy steel that was originally developed for highly stressed landing gear in military aircraft. Hy-Tuf was originated in the class of Ultra-Strength alloys. The Hy-Tuf forging is a low carbon, high manganese, high-nickel and high molybdenum steel. Strange Pro racing axles are thru-hardened, which allows for a drag racing shaft with an exceptionally high tensile strength (240,000 PSI) while retaining ductility.
