Note: This Housing must be special ordered. Additional info is needed. Call one of our Technical Sales Associates for details at 800-345-4545 or click here to Ask Tech. Lower control arm mounts are not included.

Information Required:

• Type of housing ends
• Housing width

Features:

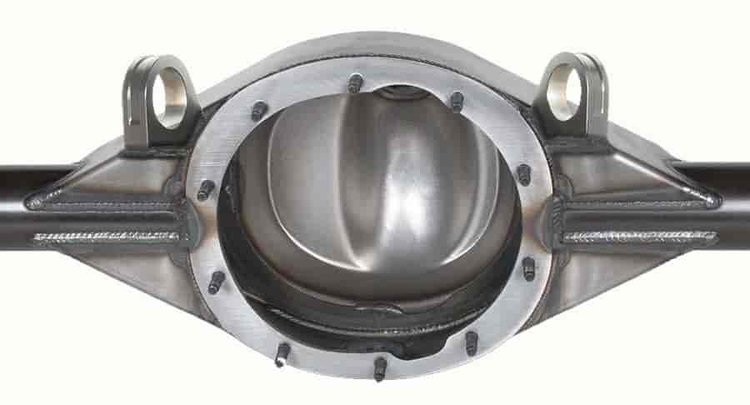

• Center Housing:
  • Constructed from .141 in. mild steel
  • Heavy duty .282 in. thick face plate
  • Internal gussets provide rigidity and support axle tubes
  • Slots allow exceptional weld contact of housing to tubes
  • Extended cover provides clearance for 9″ & 9 1/2″ gear sets
  • Fill & drain plugs added for easy fluid changes and ring gear inspection
  • Breather vent prevents build-up of internal pressure
• Housing Tubing
  • DOM 1026 steel
  • 3.250 in. OD x .250 in. wall thickness
• Choice of Housing Ends – H1138 / H1137
  • Forged chrome moly
  • Accept 3.150″ bearings
  • Other Strange housing ends are also available
• Professionally Welded
  • Jig welded to ensure proper alignment
  • Tubes internally & externally welded to housing
  • Provides maximum support & rigidity
