Vehicle Info NeededSUNEXPART NUMBER: 344-6635
22/35 Ton 2 Stage Air/Hydraulic Telescoic Truck Jack
$89999
Ships on 09/14/2026
Lowest Price GuaranteeTruck Jacks

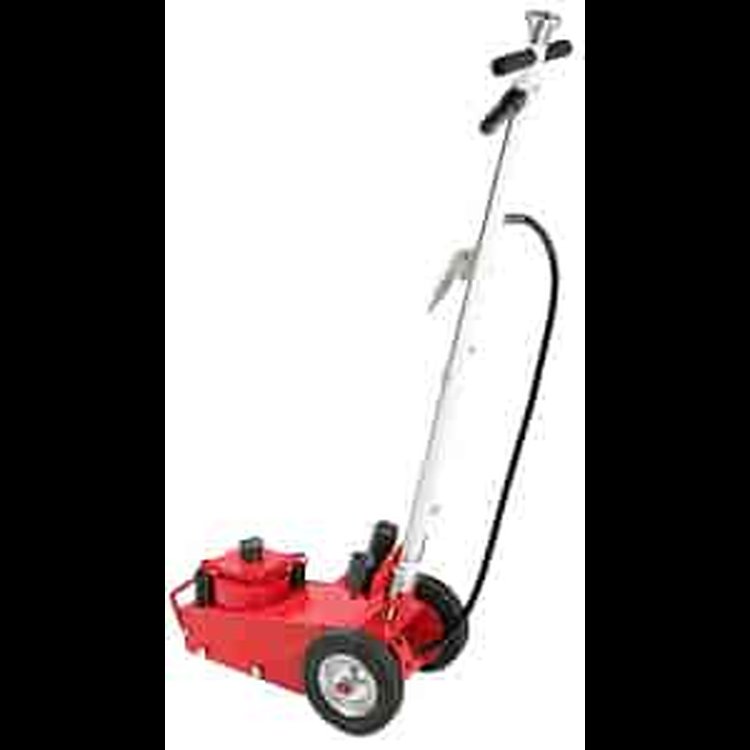

22/35 Ton 2 Stage Air/Hydraulic Telescoic Truck Jack
- Designed for heavy duty truck and trailer shop use, rail and bus work, and portable for roadside service calls.
- Narrow chassis design fits easlity between tandem wheels.
- Chassis base is contoured so wheels make contact with ground when jack is not under load and raises them off the ground when under load to prevent damage.
- Wiper seals protect hydraulic system from contaminants.
- Overload and bypass safety valves prevent the jack from being used beyond its rated capacity and ram over extension.
- Self-retracting ram
- Lever on
- Release knob on top of handle operates independently of handle locking lever.
- Integrated filter protects air motor.
- Four adaptors (1.875)
- Capacity (Tons) 22 @100 PSI
- Chassis Length (in.) 24
- Extension Screw Travel (in.) 3.375
- Handle Length (in.) 49
- Low Height (in.) 8.625
- Maximum Height Adapter (in.) 19.75
- Overall Height (in.) 13.75
- Overall Width (in.) 8.25
- Ram Travel (in.) 7.75
- Saddle Diameter (in.) 2
- Shipping Weight (lbs.) 119
- Wheel Diameter (in.) 8
- Leave the heavy work to the Sunex Tools complete line of Lifting Equipment. Jacks, hoists, stands. you name it. With low profiles and quick-lift technology, these jacks provide you with something that fits almost any application.
Part TypeFloor Jack
Product LineSunex Lifting Equipment
BrandSUNEX
Package Height9.52
Package Width15.43
Package Length27.79
Weight110.0 PG
Part CategoryAccessories
Vendor Part Number6635
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
