Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

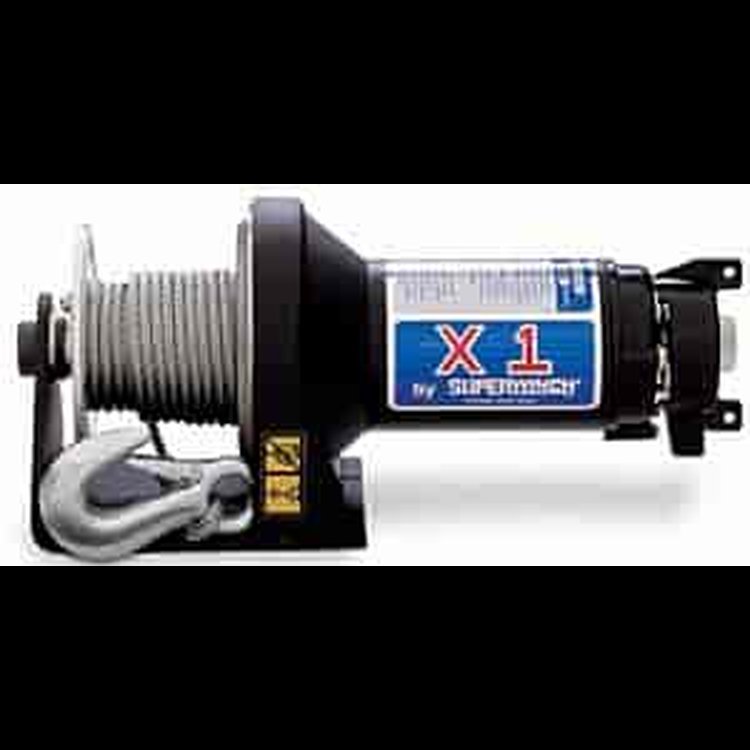

X1 & X1F Series Winch
- X1 Series Winch (Custom)
- Rated Line Pull 2,000 lb.
- 1.3 HP Motor
- Gear Ratio 123:1
- No Wire Rope
- 12VDC
Features: - Power In an Power Out
- Gearing - Differential Planetary
- Battery Cables with Terminals
- Dynamic Brake Action
- Circuit Breakers
- No Switch
- Handsaver
Dimensions: - Length - 12.81'
- Depth - 5.38'
- Height - 5.69'
- Weight - 16 lbs.
Performance: - Motor Amp Draw - 200 12V
- Line Speed- 7.0 FPM
- Gear Ratios from 123:1 to 253:1
- Sealed Motors from 1.3 to 4.2 HP
- Rated Line Pull from 1,000 to 9,000 pounds
- Available with Wire Rope from 5/32" to 5/16"
- Differential Planetary Gearing
The Superwinch Original X-Series Winches are the original winches that started it all and are as popular today as ever. When people ask for, "a winch made in the USA" they usually mean they want something serviceable, built like a tank, and most of all, something built by American hands on American soil. If this is what you demand, then the X-Series is the perfect choice. They feature rugged motors and a differential gearset with fewer parts to go wrong making them an economical and reliable choice. Made in the USA!
Features:Product LineSuperwinch Original X-Series Winches
BrandSUPERWINCH
Package Height9.25
Package Width9.75
Package Length16.25
Weight15.4 PG
Part CategoryAccessories
Package Qty1
Package TypeEA
