Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

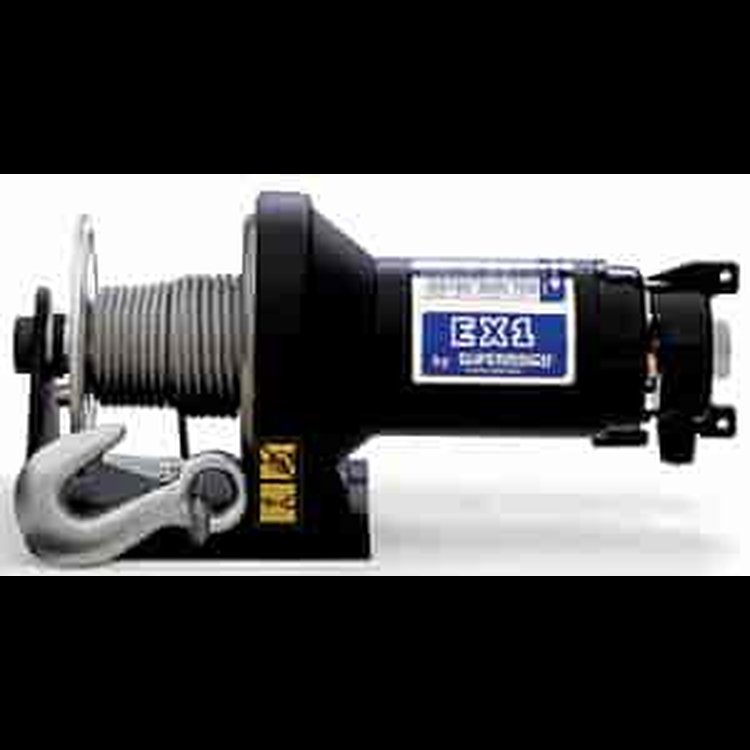

EX1 Series Winch
- EX1 Series Winch
- Rated Line Pull 1,000 lb.
- 1.3 HP Motor
- Gear Ratio 123:1
- Wire Rope 5/32'' x 25'
- 12VDC
Features: - Power In an Power Out
- Gearing - Differential Planetary
- Battery Cables with Terminals
- Dynamic Brake Action
- Circuit Breakers
- Removable Switch
- On the Motor Switching
- Handsaver
Dimensions: - Length - 12.1'
- Depth - 5.38'
- Height - 5.69'
- Weight - 15 lbs.
Performance: - Motor Amp Draw - 90 12V
- Line Speed- 12.0 FPM
Part TypeWinch
BrandSUPERWINCH
Package Height9.2
Package Width9.8
Package Length16.4
Weight17.21 PG
Weight15 lb (6.803 kg)
Part CategoryAccessories
Winch Line IncludedYes
Winch Line Length (Ft.)25
Winch Line Diameter (In.)5/32
Pull Rating (Lbs.)1,000
Mounting Hole Quantity2 holes
Winch Line MaterialSteel
RemoteMotor mounted switch
QuantitySold individually
Power OutYes
Remote IncludedYes
Free-SpoolingNo
Winch StyleElectric
No Load Line Speed21.00 fpm
Motor Horsepower1.10 hp
Drive GearPlanetary
Conforms To J706 StandardsNo
Winch Line TypeCable
BrakeYes
Winch Fairlead TypeNone
Volts12 volts
Gear Reduction Ratio123:01:00
Mounting Pattern Width3.69 in (93.726 mm)
Vendor Part Number1110
Package Qty1
Package TypeEA
