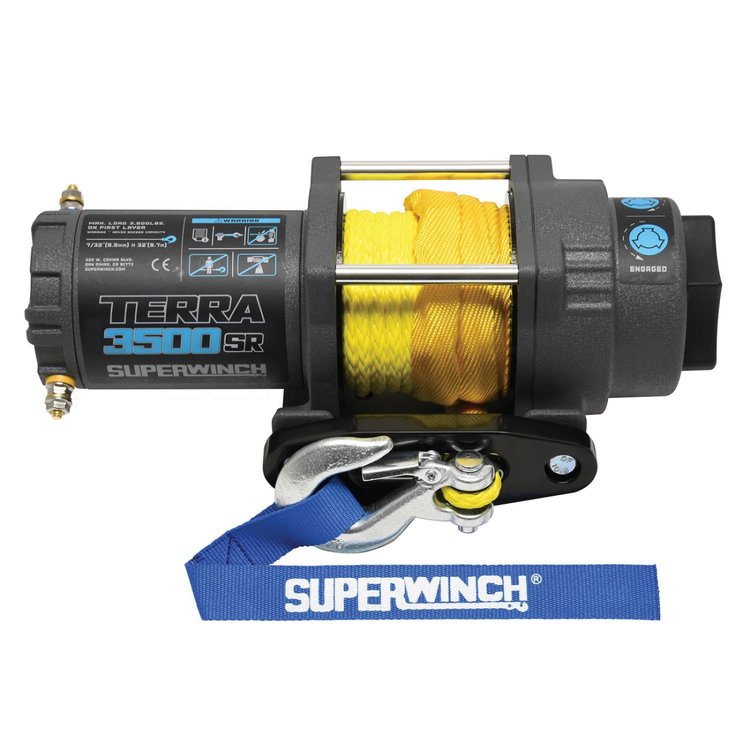

Terra 3500SR Winch Rated Line Pull 3,500-lb. [Synthetic Rope]
InfoVehicle Info Needed
SUPERWINCHPART NUMBER: 846-1135270

Terra 3500SR Winch Rated Line Pull 3,500-lb. [Synthetic Rope]

$46799
7 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

ATV Tool Box Black Powder Coated Aluminum Diamond Plate

BETTER BUILT

ATV Tool Box Black Powder Coated Aluminum Diamond Plate

Part Number : 169-67210275
$30116
ATV Tool Box Aluminum Diamond Plate

BETTER BUILT

ATV Tool Box Aluminum Diamond Plate

Part Number : 169-67011386
$17617$220.37
You Save$44.20
ATV Challenger Tool Box Length: 32"

LUND

ATV Challenger Tool Box Length: 32"

Part Number : 640-288272
$18299
Motorcycle and ATV SuperCool Coolant 1/2 gallon

RED LINE OIL

Motorcycle and ATV SuperCool Coolant 1/2 gallon

Part Number : 816-80205
$3079

Synthetic Rope Equipped
Terra 3500SR Winch
  • Rated Line Pull 3,500-lb.
  • 1.600-HP Motor
  • Free Spooling Clutch
  • Gear Ratio 198:1
  • Aluminum Hawse Fairlead
  • Synthetic Rope 7/32 in. x 32 ft.

    SuperWinch 1135270 Terra 3500SR Winch Specifications:

    • Designed for ATV and UTV use
    • Gearing: 3-Stage Planetary
    • Brake: Automatic 100% Load Holding
    • Clutch: Free-Spooling, Ergonomic Control
    • Remote: 10 ft. Sealed Hand-Held
    • Compact narrow design allows easy mounting
    • Serious Winches for Your ATV/UTV Adventures

      Whatever motorsports vehicle you ride, there's a Superwinch engineered with the power you require. The rugged all-steel planetary gear sets (with machined-in, oil pocket bronze bearings and steel drums) designed for synthetic/wire rope with easy-to-engage and disengage functionality, and ergonomic free-spool control allows effortless use. Superior weather-sealed magnet motors with low amp draw are standard features on Terra series winches, making this the last winch you'll ever need.

    Part TypeWinch
    Product LineSuperwinch Terra Series Winches
    BrandSUPERWINCH
    Package Height8.66
    Package Width9.84
    Package Length16.14
    Weight24.0 PG
    Part CategoryAccessories
    Winch Line IncludedYes
    Winch Line Length (Ft.)32
    Winch Line Diameter (In.)7/16
    Winch Line MaterialSynthetic
    Rated Single Line Pull (Lbs.)3500
    QuantitySold individually
    Remote IncludedYes
    Free-SpoolingYes
    Mounting Pattern Length4.87 in (123.698 mm)
    Winch StyleElectric
    Motor Horsepower1.60 hp
    Drive Gear3-stage planetary
    Voltage12 v
    Remote (Ft.)10 hand-held remote switch
    Part FitmentUniversal
    BrakeYes
    Winch Fairlead TypeRoller
    Gear Reduction Ratio198:1
    Mounting Pattern Width3 in (76.2 mm)
    Vendor Part Number1135270
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
