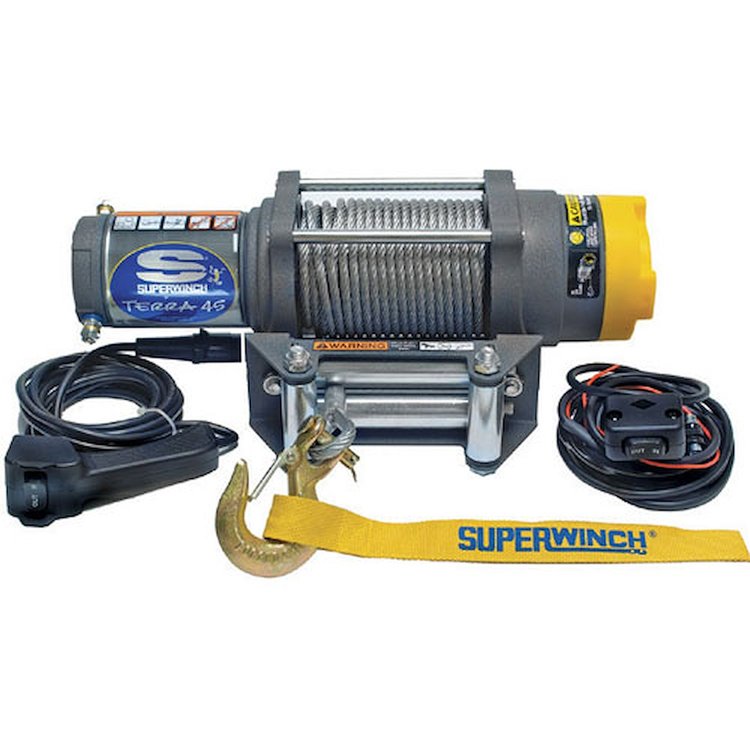

Terra 45 Winch Rated Line Pull 4,500-lb.
Product Discontinued
SUPERWINCHPART NUMBER: 846-1145220

Terra 45 Winch Rated Line Pull 4,500-lb.

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Wire Rope Equipped
    Terra 45 Winch
  • Rated Line Pull 4,500-lb.
  • 1.6-HP Motor
  • Free Spooling Clutch
  • Gear Ratio 191:1
  • 4-Way Roller Fairlead
  • Wire Rope 1/4" x 55'

    Specifications:
  • Gearing: 3-Stage Planetary
  • Brake: Automatic 100% Load Holding
  • Clutch: Free-Spooling, Ergonomic Control
  • Remote: 10' Sealed Hand-Held
  • Drum Diameter: 2.0"
  • Drum Lenght: 4.9"
  • Dimensions: 15.1" L x 4.5" W x 4.8" H
  • Installed Weight: 22.0-lbs.

    Serious Winches for Your ATV/UTV Adventures

    Whatever motorsports vehicle you ride, there's a Superwinch engineered with the power you require. The rugged all-steel planetary gear sets (with machined-in, oil pocket bronze bearings and steel drums) designed for synthetic/wire rope with easy-to-engage and disengage functionality, and ergonomic free-spool control allows effortless use. Superior weather-sealed magnet motors with low amp draw are standard features on Terra series winches, making this the last winch you'll ever need.

Part TypeWinch
Product LineSuperwinch Terra Series Winches
BrandSUPERWINCH
Package Height8.0
Package Width13.0
Package Length17.0
Weight37.44 PG
Weight22 lb (9.977 kg)
Part CategoryAccessories
Mounting Hole Quantity4 holes
Power OutYes
Motor Horsepower1.60 hp
Drive GearPlanetary
Conforms To J706 StandardsYes
Remote (Ft.)10 hand-held remote switch
Winch Line TypeCable
BrakeYes
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)55
Winch Line Diameter (In.)1/4
Pull Rating (Lbs.)4,500
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length6.66 in (169.164 mm)
Winch StyleElectric
No Load Line Speed15.00 fpm
Winch Fairlead TypeRoller
Gear Reduction Ratio191:01:00
Mounting Pattern Width3 in (76.2 mm)
Vendor Part Number1145220
Package Qty1
Package TypeEA
