![Terra 4500SR Winch Rated Line Pull 4,500-lb. [Synthetic Rope]](https://www.jegs.com/images/mini_750/800/846/846-1145270.jpg)
Vehicle Info NeededSUPERWINCHPART NUMBER: 846-1145270

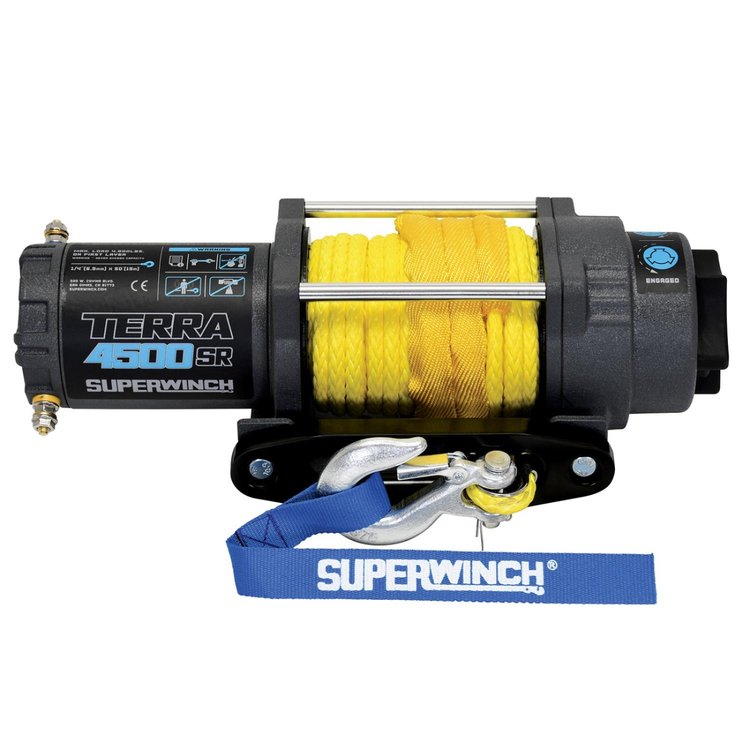

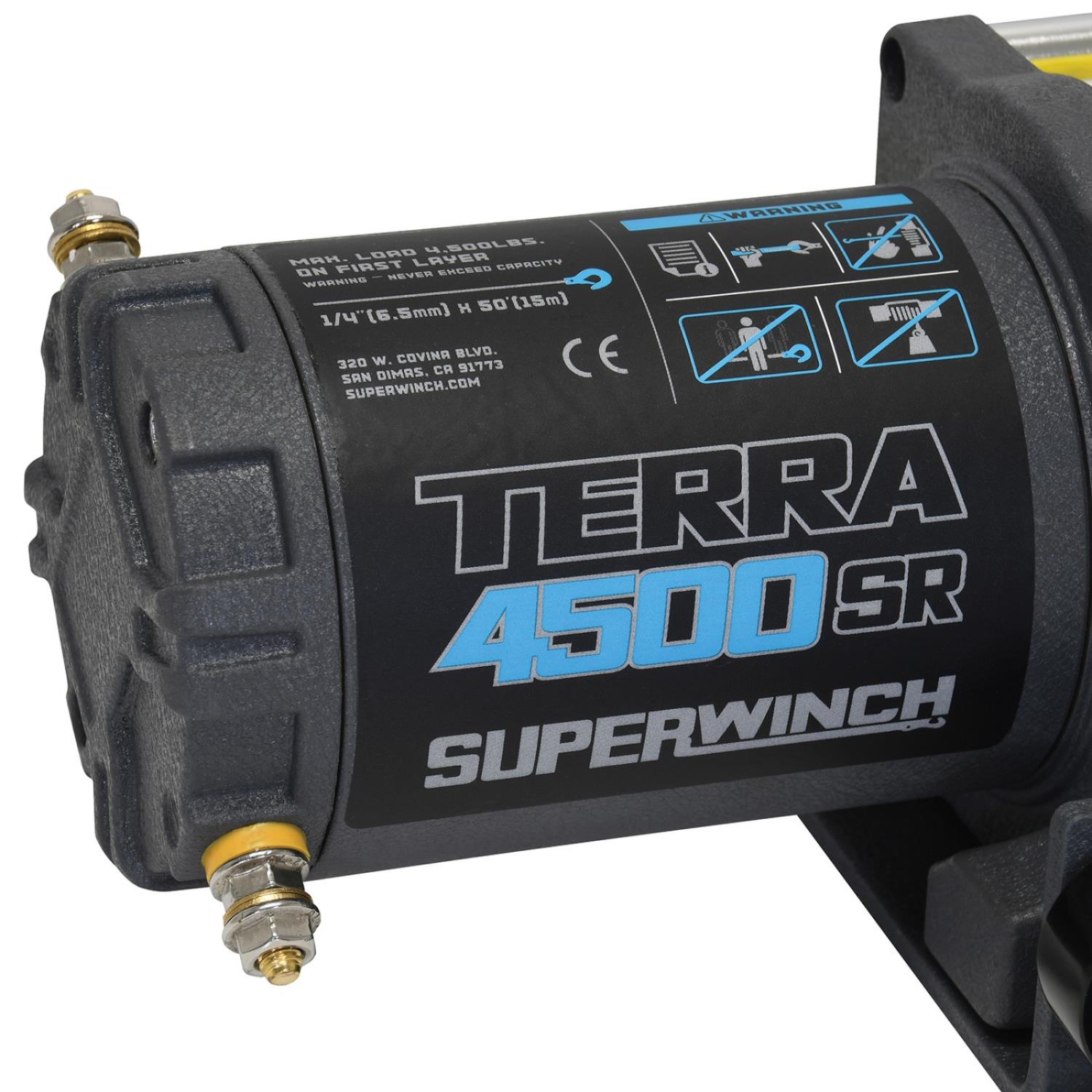

Terra 4500SR Winch Rated Line Pull 4,500-lb. [Synthetic Rope]
$53999
Ships on 09/08/2026
Lowest Price GuaranteeSynthetic Rope Equipped
Terra 4500SR WinchRated Line Pull 4,500-lb. 1.800-HP Motor Free Spooling Clutch Gear Ratio 198:1 Black Aluminum Hawse Fairlead Synthetic Rope 1/4 in. x 50 ft.
SuperWinch 1145270 Terra 4500SR Winch Specifications:
- Designed for ATV and UTV use
- Gearing: 3-Stage Planetary
- Brake: Automatic 100% Load Holding
- Clutch: Free-Spooling, Ergonomic Control
- Remote: 10 ft. Sealed Hand-Held
- Wider spool design allows increased rope length
Part TypeWinch
BrandSUPERWINCH
Package Height8.66
Package Width9.84
Package Length17.71
Weight29.0 PG
Part CategoryAccessories
Winch Line IncludedYes
Winch Line Length (Ft.)50
Winch Line Diameter (In.)1/4
Winch Line MaterialSynthetic
Rated Single Line Pull (Lbs.)4500
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length4.87 in (123.698 mm)
Winch StyleElectric
Motor Horsepower1.80 hp
Drive Gear3-stage planetary
Voltage12 v
Part FitmentUniversal
BrakeYes
Winch Fairlead TypeRoller
Gear Reduction Ratio198:1
Mounting Pattern Width3 in (76.2 mm)
Vendor Part Number1145270
Package Qty1
Package TypeEA
