Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

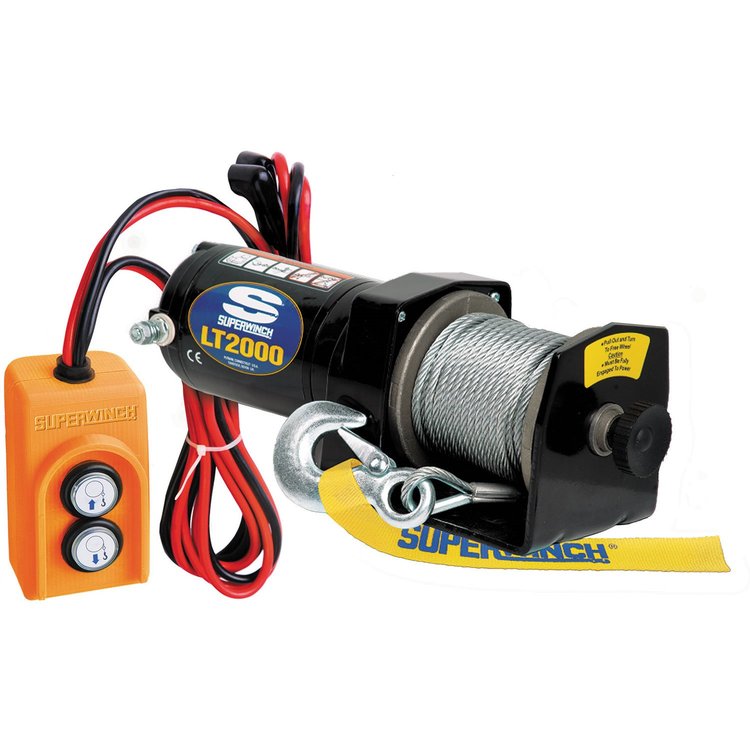

Utility Winch
- LT2000 Utility Winch
- 1.0 HP Motor
- Rated Line Pull 2000 lbs.
- 49 FT. 5/32" Cable
- Free Spooling Clutch
- Remote Switch (8 ft. Lead)
Specifications:
- Motor: 1.0 hp (0.8kW) PM Motor, 12V DC
- Gearing: Differental Planetary
- Gear Ratio: 153:1
- Freespooling Clutch: Pull and Turn Action
- Wire Rope: 5/32" x 49'
- Dimensions: 11.0' long x 4.1' diameter x 4.1' height
- Drum Diameter: 1.25'
- Drum Length: 2.83'
- Installed Weight: 12.0 lb
- Switching Mechanism: Direct Switch
Part TypeWinch
Product LineTrailer Accessories
BrandSUPERWINCH
Package Height6.1
Package Width10.1
Package Length15.6
Weight14.29 PG
Weight14 lb (6.349 kg)
Part CategoryAccessories
Mounting Hole Quantity2 holes
Power OutYes
Motor Horsepower1.00 hp
Drive GearPlanetary
Conforms To J706 StandardsNo
Remote (Ft.)8 hand-held remote switch
Winch Line TypeCable
BrakeNo
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)49
Winch Line Diameter (In.)5/32
Pull Rating (Lbs.)2,000
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length3.15 in (80.01 mm)
Winch StyleElectric
No Load Line Speed10.00 fpm
Winch Fairlead TypeHawse
Gear Reduction Ratio153:01:00
Vendor Part Number1220210
Package Qty1
Package TypeEA
