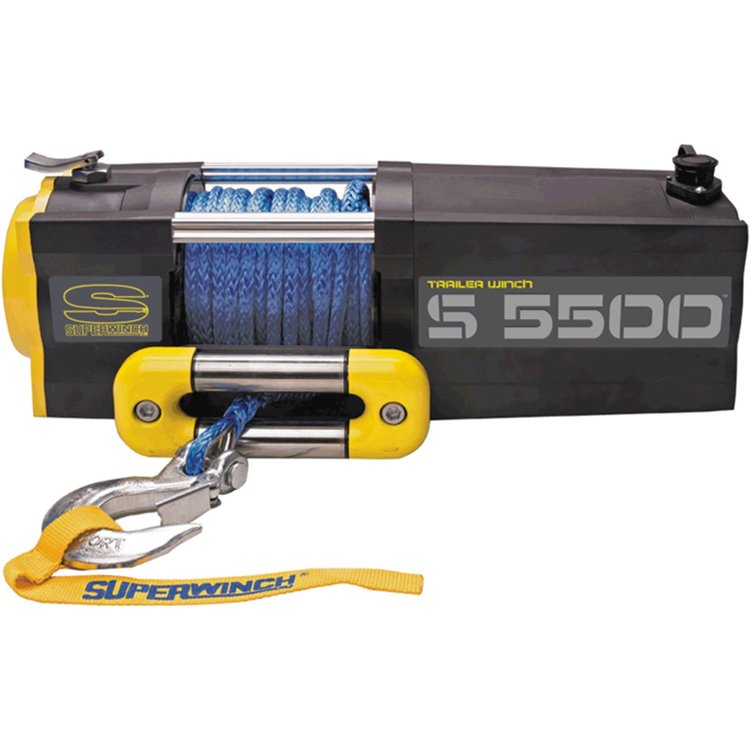

S5500 Winch 3.6 HP motor
Items You Need
- Superwinch S5500 Winch
- 3.6 HP motor
- Winch weight: 42 lbs
- Synthetic rope: 1/4" x 60'
- Rated line pull: 5,500 lbs
The new S5500 Trailer Winch pulls 5,500 lbs with a 3.6 HP permanent magnet motor driven through an all steel 3-Stage planetary gear box at 24 FPM.SPECIFICATIONS Rated Line Pull 5,500 lbs (2495 kgs) Motor 3.6hp (2.7 kW) Gearing 3-Stage Planetary Gear Ratio 185:1 Solenoid Sealed and Breaker Protected Clutch Innovative "kick-flip" lever Brake 100% Load Holding Cable 1/4" X 60' (6.4 mm x 18.3 m) Hook Heavy-Duty, Clevis Pinned Latch Fairlead Exclusive Roller-Hawse Remote 30' Custom Rocker Remote Drum Length 4.87" (123.7 mm) Drum Barrel Diameter 2.5" (63.5 mm) Installed Weight 42 lbs (19.0 kg) Line Pull: 0 lbs 50 Amps Motor Draw
24 FPM (7.3 MPM)Line Pull: 5500 lbs 340 Amps Motor Draw
5 FPM (1.5 MPM)Mounting 2 or 4 bolt Warranty Limited Lifetime Warranty
3 Year on Solenoid
- Upgraded Motor Design
- Faster and Stronger Winching
- Innovative 2-Hole Drum Design
The S-Series Winches from Superwinch are the iconic utility and trailer winch. Superwinch has improved upon the already great S-Series Winches with the new Gen 3 S-Series Winches. The Superwinch Gen 3 S-Series Winches has a stronger engine, combined with more efficient gearing. This provides users with fast winching and better pulling power. Superwinch Gen 3 S-Series Winches also utilize an innovative 2-hole drum which prevents rope from detaching from the drum, wire or synthetic.
Features:
