Vehicle Info NeededSUPERWINCHPART NUMBER: 846-1475201

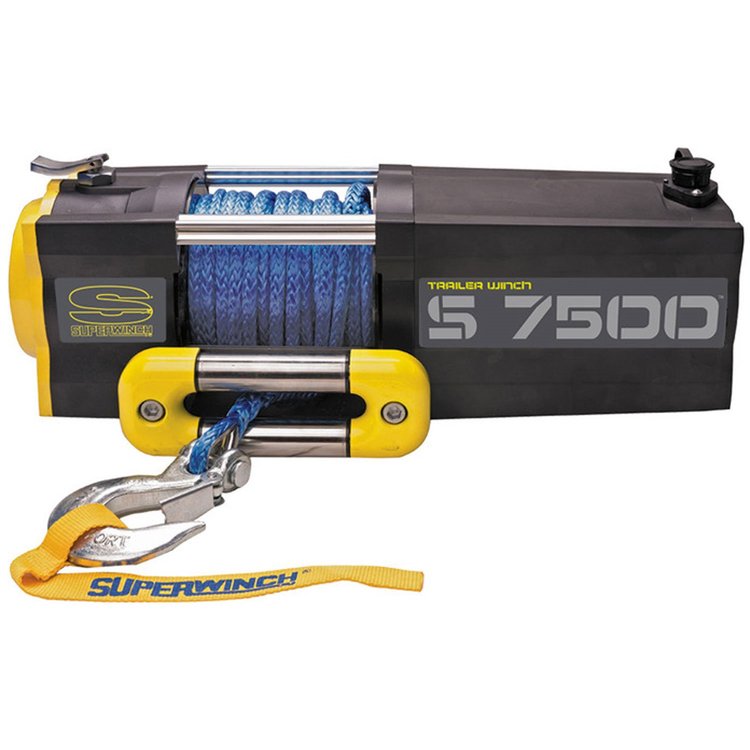

S7500 Winch 3.6 HP motor
$94399
5 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeSynthetic Rope Equipped
- Superwinch S7500 Winch
- 3.6 HP motor
- Winch weight: 46 lbs
- Synthetic rope: 5/16" x 55'
- Rated line pull: 7,500 lbs
SPECIFICATIONS Rated Line Pull 7,500 lbs (3402 kg) Motor 3.6hp (2.7 kW) Gearing 3-Stage Planetary Gear Ratio 249:1 Solenoid Sealed and Breaker Protected Clutch Innovative "kick-flip" lever Brake 100% Load Holding Cable 5/16" x 55' (7.9 mm x 16.8 m) Hook Heavy-Duty, Clevis Pinned Latch Fairlead Exclusive Roller-Hawse Remote 30' Custom Rocker Remote Drum Length 4.87" (123.7 mm) Drum Barrel Diameter 2.5" (63.5 mm) Installed Weight 46 lbs (20.9 kg) Line Pull: 0 lbs 40 Amps Motor Draw
16.5 FPM (5 MPM)Line Pull: 7500 lbs 335 Amps Motor Draw
3.5 FPM (1.1 MPM)Mounting 4 bolt Warranty Limited Lifetime Warranty
3 Year on Solenoid
- Upgraded Motor Design
- Faster and Stronger Winching
- Innovative 2-Hole Drum Design
The S-Series Winches from Superwinch are the iconic utility and trailer winch. Superwinch has improved upon the already great S-Series Winches with the new Gen 3 S-Series Winches. The Superwinch Gen 3 S-Series Winches has a stronger engine, combined with more efficient gearing. This provides users with fast winching and better pulling power. Superwinch Gen 3 S-Series Winches also utilize an innovative 2-hole drum which prevents rope from detaching from the drum, wire or synthetic.
Features:
Part TypeWinch
Product LineSuperwinch Gen 3 S-Series Winches
BrandSUPERWINCH
Package Height9.0
Package Width13.4
Package Length21.8
Weight53.85 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number1475201
Package Qty1
Package TypeEA
