Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

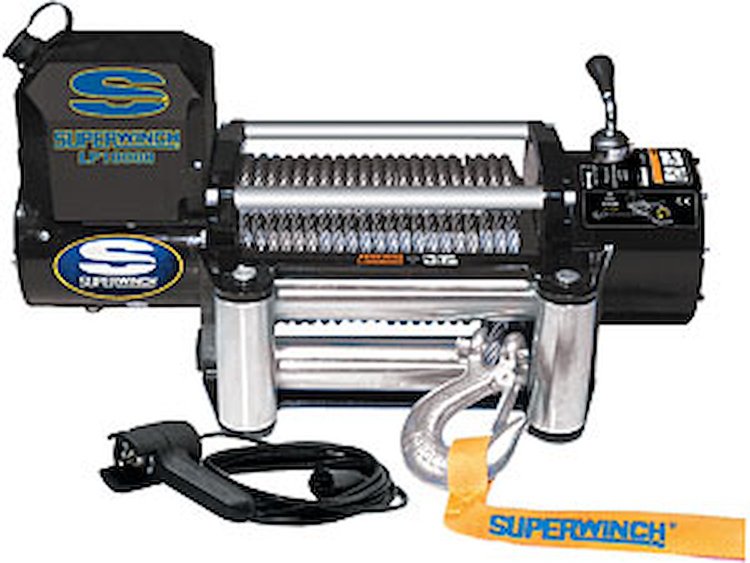

- LP10000 Winch
- 10,000lb Rated Line Pull
- Rated: Line Pull 10,000 lbs (4,536 kgs)
- Motor: 5.1 HP, Series Wound
- Gearing: 3-Stage Planetary
- Gear Ratio 235:1
- Solenoid: Weather-Sealed Solenoid and Circuit Breaker Protected
- Clutch: Free-Spooling, Lever Shift
- Brake: Mechanical, Automatic Load Holding
- Rope: Wire Rope 3/8" x 85' (9.5mm x 25.9m)
- Hook: Clevis Hook with Latch
- Fairlead: Heavy Duty, 4-Way Roller
- Remote Rubber: 12' Hand-held
- Dimensions 21.3" L x 6.3" D x 8.6" H (541 mm L x 160 mm D x 218.4 mm H)
- Drum Diameter: 2.5" (63.5mm)
- Drum Length: 8.8" (224mm)
- Mounting: Bolt Pattern 10" x 4.5" (254mm x 114.3mm)
- Installed Weight: 83 lbs (37.64 kgs)
- Shipping Weight: 90 lbs (40.8 kgs)
- Warranty: Two Year Limited Warranty
- Line Pull: 0 lbs 90 Amps Motor Draw / 16.0 FPM (4.87 MPM) Line Speed
- Line Pull: 10,000 lbs 350 Amps Motor Draw / 1.52 FPM (0.46 MPM) Line Speed
Part TypeWinch
BrandSUPERWINCH
Package Height13.0
Package Width13.0
Package Length23.0
Weight65.0 PG
Weight83 lb (37.642 kg)
Part CategoryAccessories
Mounting Hole Quantity4 holes
Remote12 ft. hand-held remote switch
Power OutYes
Motor Horsepower5.10 hp
Drive Gear3-stage planetary
Conforms To J706 StandardsYes
Winch Line TypeCable
BrakeYes
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)85
Winch Line Diameter (In.)3/8
Pull Rating (Lbs.)10,000
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed16.00 fpm
Jeep Jl1
Part FitmentUniversal
Winch Fairlead TypeRoller
Gear Reduction Ratio2351
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number1510200
Package Qty1
Package TypeEA
