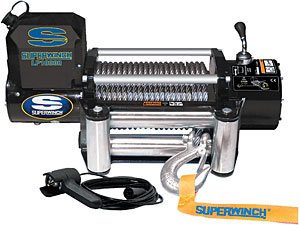

Remanufactured LP10000 Winch 10,000lb Rated Line Pull

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

10,000lb Rated Line Pull
Rated: Line Pull 10,000 lbs (4,536 kgs)
Motor: 5.1 HP, Series Wound
Gearing: 3-Stage Planetary
Gear Ratio 235:1
Solenoid: Weather-Sealed Solenoid and Circuit Breaker Protected
Clutch: Free-Spooling, Lever Shift
Brake: Mechanical, Automatic Load Holding
Rope: Wire Rope 3/8" x 85' (9.5mm x 25.9m)
Hook: Clevis Hook with Latch
Fairlead: Heavy Duty, 4-Way Roller
Remote Rubber: 12' Hand-held
Dimensions 21.3" L x 6.3" D x 8.6" H (541 mm L x 160 mm D x 218.4 mm H)
Drum Diameter: 2.5" (63.5mm)
Drum Length: 8.8" (224mm)
Mounting: Bolt Pattern 10" x 4.5" (254mm x 114.3mm)
Installed Weight: 83 lbs (37.64 kgs)
Shipping Weight: 90 lbs (40.8 kgs)
Warranty: Two Year Limited Warranty
Line Pull: 0 lbs 90 Amps Motor Draw / 16.0 FPM (4.87 MPM) Line Speed
Line Pull: 10,000 lbs 350 Amps Motor Draw / 1.52 FPM (0.46 MPM) Line Speed

BrandSUPERWINCH

Package Height12.5

Package Width13.0

Package Length24.0

Weight87.63 PG

Part CategoryAccessories

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
