Vehicle Info NeededSUPERWINCHPART NUMBER: 846-1511200

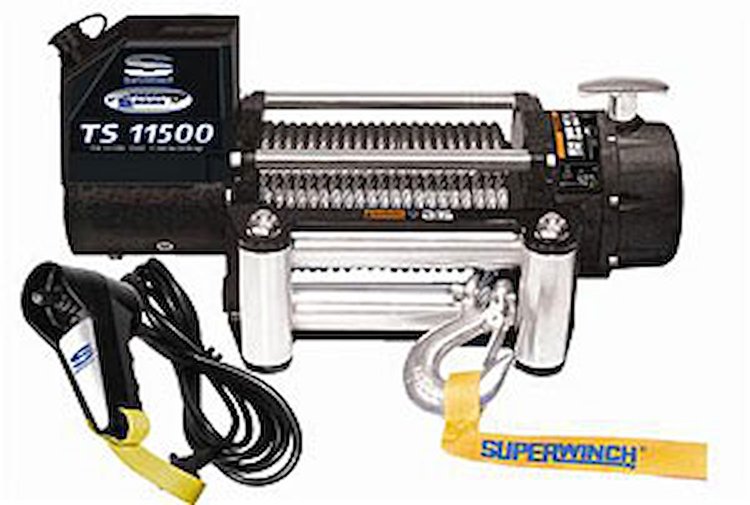

Tiger Shark 11500 12V Series Winch
$80499
Ships on 09/08/2026
Lowest Price GuaranteeWinches
- Tiger Shark 11500 12V Series Winch
- Rated Line Pull: 11,500 lbs
- Motor: Sealed 6.0 HP Series Wound
- Gearing: 3-Stage Planetary
- Gear Ratio: 218:1
- Dimensions: 20.8" L x 6.3" W x 9.2" H
Specifications - Rated Line Pull: 11,500 lbs (5216 kg)
- Motor: Sealed 6.0 HP Series Wound
- Gearing: 3-Stage Planetary
- Gear Ratio: 218:1
- Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
- Freespooling Clutch: Pull and Turn, Ergo
- Brake: Mechanical, Automatic Load Holding
- Rope: Wire 3/8" x 85' (9.5mm x 26m)
- Hook: Heavy Duty Clevis Pinned Latched
- Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
- Remote: 12' Rubber Sealed Hand-held
- Dimensions: 20.8" L x 6.3" W x 9.23 H (529mm L x 160mm W x 234.5mm H)
- Drum Diameter: 2.5" (63.5mm)
- Drum Length: 9" (228.6mm)
- Installed Weight: 94 lbs. (42 kg)
- Shipping Weight: 98 lbs (44kg)
- Warranty: Limited 2 Year Warranty
- Line Pull: 0 lbs (0 kgs) 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed
- Line Pull: 11,500 lbs (5,216 kgs) 410 Amps Motor Draw/2 FPM (0.6 M/M) Line Speed
An Efficient Solution For a Heavier Load
The Superwinch Tiger Shark Series Winch brings unmatched value, quality, and functionality to the entry-level winch market while outperforming the competition in all weather conditions. There's not a better intermediate planetary gear winch on the market.
Part TypeWinch
Product LineSuperwinch Tiger Shark Series Winches
BrandSUPERWINCH
Package Height12.7
Package Width12.9
Package Length23.8
Weight82.89 PG
Weight94 lb (42.63 kg)
Part CategoryAccessories
Mounting Hole Quantity4 holes
Power OutYes
Motor Horsepower6.00 hp
Drive Gear3-stage planetary
Conforms To J706 StandardsYes
Remote (Ft.)12 hand-held remote switch
Winch Line TypeCable
BrakeYes
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)84
Pull Rating (Lbs.)11,500
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed19.00 fpm
Part FitmentUniversal
Winch Fairlead TypeRoller
Gear Reduction Ratio218:01:00
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number1511200
Package Qty1
Package TypeEA
