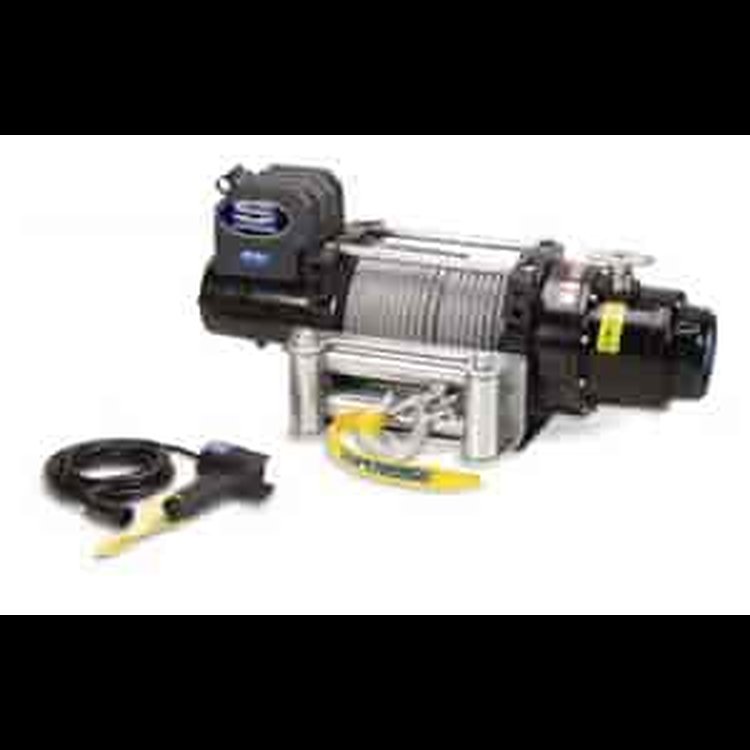

Standard Features

Power In and Power Out

Automatic Load Holding Brake

Quiet, Efficient, Full Metal 3-Stage Planetary Gear Box

Freespooling Clutch for Fast Wire Rope Payout

Efficient 5.6 hp Series Wound Motor

Heavy Duty Sealed Contactor

Durable Handheld Remote Switch on 15' Lead

Heavy Duty Roller Fairlead -- Roller fairlead does not attach directly to the winch.

First and Last 10' of Wire Rope Dyed for Beginning /End Warning

Performance 12VDC (1st layer on drum)

Line Pull
lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

Motor
Amps 24V

0

34.9 (7.3)

55

49

6,000 (2,722)

6.6 (2.0)

210

172

10,000 (4,536)

4.0 (1.2)

290

260

12,500 (5,670)

2.6 (0.8)

350

310

Specifications

Rated Line Pull (Single Line)

12,500 lb. (5,670 kg)

Motor

5.6 hp, 90° Rotatable, series wound 12V

3.6 hp, 90° Rotatable, series wound 24V

Gearing

3 Stage Planetary

Gear Ratio

261:1

Freespooling Clutch

Lift and turn

Braking

Automatic 100% Load Holding

Wire Rope

3/8" x 125' (9.5mm x 38.1m)

Dimensions

26.50" l. x 8.50" d. x 11.20" h.

(573mm l. x 215.9mm d. x 284.5mm h.)

Drum Diameter

3.5" (88.9mm)

Drum Length

8" (203mm)

Weight

146 lb. (66.2 kg)

Switching Method

15' (4.5m) Rubber Handheld Remote

Switching Mechanism

Heavy Duty Sealed Contactor

Roller Fairlead

Standard

Pulley Block

Optional P/N/ 7750A

Color-Coded Wiring

Standard

Wireless Remote Control

Optional P/N 06702

Mounting Plate

Optional P/N 2302287

Recommended Accessories

Pulley Block

7750A

Wireless Remote

06702

Mount Plate

2302287

Replacement Parts

Wire Rope 3/8" x 125' (9.5mm x 38.1m)

90-33472

Handheld Remote Switch 15' (4.5m)

2272

Wire Harness Kit

2302283

Wireless Control

06702
