Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Winches

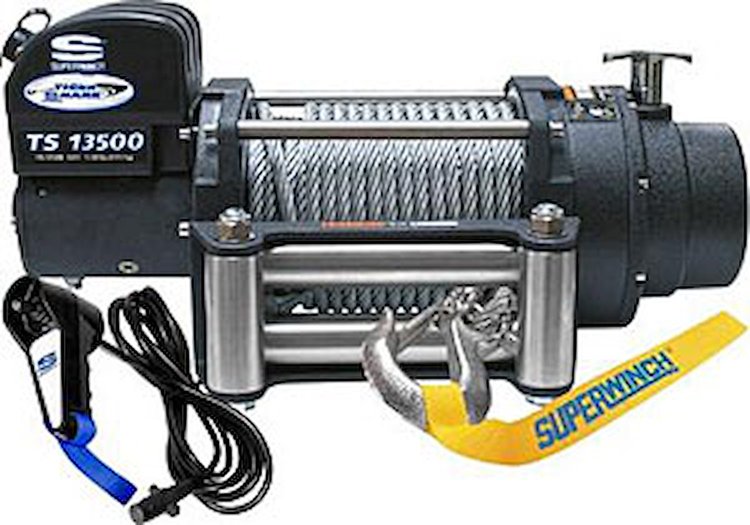

- Tiger Shark 13500 12V Series Winch
- 5.3 HP Motor
- Rated Line Pull 13500 lbs.
- Roller Fairlead
- 95 FT. 13/32" Cable
- Free Spooling Clutch
- Automatic Load holding Brake
- Remote Switch (12 ft. Lead)
Specifications - Rated Line Pull: 13,500 lbs (5216 kg)
- Motor: Sealed 5.3 HP Series Wound
- Gearing: 4-Stage Planetary
- Gear Ratio: 518:1
- Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
- Freespooling Clutch: Pull and Turn, Ergo
- Brake: Mechanical, Automatic Load Holding
- Rope: Wire 13/32" x 95' (10.3mm x 26m)
- Hook: Heavy Duty Clevis Pinned Latched
- Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
- Remote: 12' Rubber Sealed Hand-held
- Dimensions: 23.6" L x 8.4" W x 11" H (601.5mm L x 214.5mm W x 279.5mm H)
- Drum Diameter: 3.5" (89mm)
- Drum Length: 8.7" (220mm)
- Installed Weight: 134 lbs. (60.7 kg)
- Shipping Weight: 140lbs (63.5 kgs)
- Warranty: Limited 2 Year Warranty
- Line Pull: 0 lbs (0 kgs) 120 Amps Motor Draw/11 FPM (3.4 MPM) Line Speed
- Line Pull: 13,500 lbs (6,123.5 kgs) 370 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed
Part TypeWinch
BrandSUPERWINCH
Package Height14.0
Package Width14.0
Package Length26.0
Weight140.0 PG
Weight134 lb (60.771 kg)
Part CategoryAccessories
Mounting Hole Quantity4 holes
Power OutYes
Motor Horsepower5.30 hp
Drive Gear3-stage planetary
Conforms To J706 StandardsYes
Remote (Ft.)12 hand-held remote switch
Winch Line TypeCable
BrakeYes
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)95
Winch Line Diameter (In.)13/32
Pull Rating (Lbs.)13,500
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed11.00 fpm
Part FitmentUniversal
Winch Fairlead TypeRoller
Gear Reduction Ratio518:01:00
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number1513200
Package Qty1
Package TypeEA
