Product Discontinued
SUPERWINCHPART NUMBER: 846-1515200

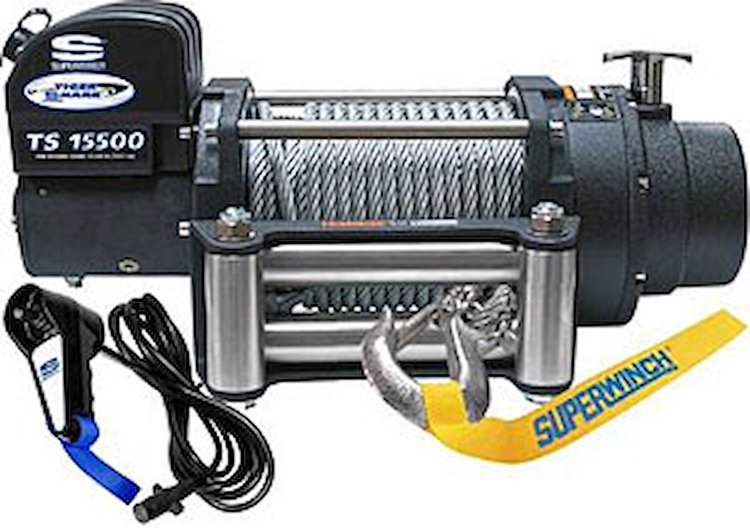

Tiger Shark 15500 Series Winch Rated Line Pull: 15,500 lbs (7031 kg)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Winches
- Tiger Shark 15500 12V Series Winch
- Rated Line Pull: 15,500 lbs (7031 kg)
- Motor: Sealed 5.7 HP Series Wound
- Gearing: 4-Stage Planetary
- Gear Ratio: 518:1
- Dimensions: 23.6" L x 8.4" W x 11" H
Specifications - Rated Line Pull: 15,500 lbs (7031 kg)
- Motor: Sealed 5.7 HP Series Wound
- Gearing: 4-Stage Planetary
- Gear Ratio: 518:1
- Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
- Freespooling Clutch: Pull and Turn, Ergo
- Brake: Mechanical, Automatic Load Holding
- Rope: Wire 29/64" x 92' (11.5mm x 28m)
- Hook: Heavy Duty Clevis Pinned Latched
- Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
- Remote: 12' Rubber Sealed Hand-held
- Dimensions: 23.6" L x 8.4" W x 11" H (601.5mm L x 214.5mm W x 279.5mm H)
- Drum Diameter: 3.5" (89mm)
- Drum Length: 8.7" (220mm)
- Installed Weight: 140 lbs. (63.5 kg)
- Shipping Weight: 144lbs (65 kgs)
- Warranty: Limited 2 Year Warranty
- Line Pull: 0 lbs (0 kgs) 120 Amps Motor Draw/11 FPM (3.4 MPM) Line Speed
- Line Pull: 15,500 lbs (7,031 kgs) 440 Amps Motor Draw/3.5 FPM (1 M/M) Line Speed
Part TypeWinch
BrandSUPERWINCH
Package Height11.5
Package Width16.0
Package Length28.0
Weight160.0 PG
Weight140 lb (63.492 kg)
Part CategoryAccessories
Mounting Hole Quantity4 holes
Remote12 ft. hand-held remote switch
Power OutYes
Motor Horsepower5.70 hp
Drive Gear4-stage planetary
Conforms To J706 StandardsYes
Winch Line TypeCable
BrakeYes
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)92
Winch Line Diameter (In.)29/64
Pull Rating (Lbs.)15,500
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed11.00 fpm
Jeep Jl1
Winch Fairlead TypeRoller
Gear Reduction Ratio5181
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number1515200
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
