Winches

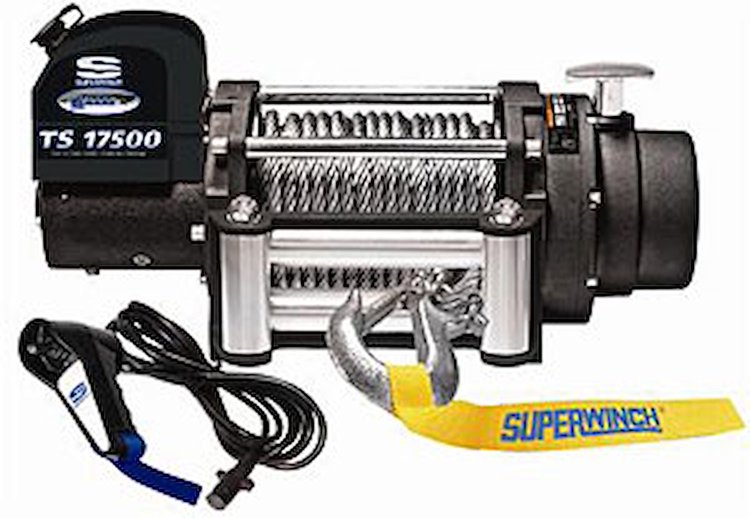

- Tiger Shark 17500 12V Series Winch
- Rated Line Pull: 17,500 lbs (7938 kg)
- Motor: Sealed 6.5 HP Series Wound
- Gearing: 4-Stage Planetary
- Gear Ratio: 518:1
- Dimensions: 23.6" L x 8.4" W x 11" H
Specifications - Rated Line Pull: 17,500 lbs (7938 kg)
- Motor: Sealed 6.5 HP Series Wound
- Gearing: 4-Stage Planetary
- Gear Ratio: 518:1
- Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
- Freespooling Clutch: Pull and Turn, Ergo
- Brake: Mechanical, Automatic Load Holding
- Rope: Wire 1/2" x 90' (12.7mm x 27m)
- Hook: Heavy Duty Clevis Pinned Latched
- Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
- Remote: 12' Rubber Sealed Hand-held
- Dimensions: 23.6" L x 8.4" W x 11" H (601.5mm L x 214.5mm W x 279.5mm H)
- Drum Diameter: 3.5" (89mm)
- Drum Length: 8.7" (220mm)
- Installed Weight: 150 lbs. (68 kg)
- Shipping Weight: 154lbs (70 kgs)
- Warranty: Limited 2 Year Warranty
- Line Pull: 0 lbs (0 kgs) 120 Amps Motor Draw/11 FPM (3.4 MPM) Line Speed
- Line Pull: 17,500 lbs (7,938 kgs) 460 Amps Motor Draw/2.8 FPM (0.85 M/M) Line Speed
Part TypeWinch
BrandSUPERWINCH
Package Height14.0
Package Width14.0
Package Length26.0
Weight158.0 PG
Weight150 lb (68.027 kg)
Part CategoryAccessories
Mounting Hole Quantity4 holes
Power OutYes
Motor Horsepower6.50 hp
Drive Gear4-stage planetary
Conforms To J706 StandardsYes
Remote (Ft.)12 hand-held remote switch
Winch Line TypeCable
BrakeYes
Volts12 volts
Winch Line IncludedYes
Winch Line Length (Ft.)90
Pull Rating (Lbs.)17,500
Winch Line MaterialSteel
QuantitySold individually
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed11.00 fpm
Part FitmentUniversal
Winch Fairlead TypeRoller
Gear Reduction Ratio518:01:00
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number1517200
Package Qty1
Package TypeEA
