Vehicle Info Needed

SUPERWINCHPART NUMBER: 846-1595200

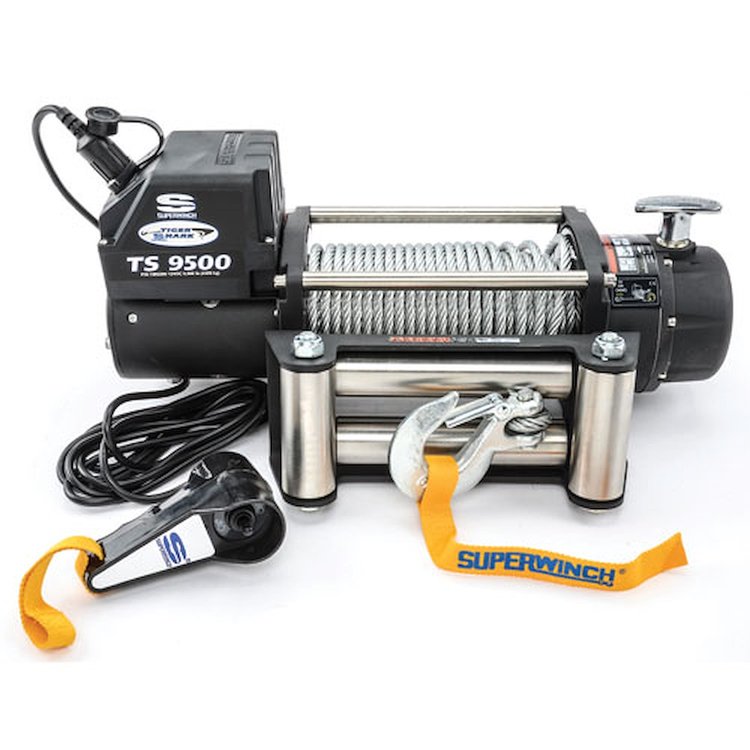

Tiger Shark 9500 12V Series Winch

Name: Tiger Shark 9500 12V Series Winch
Brand: SUPERWINCH
SKU: 846-1595200
Price: 663.99 USD
Availability: InStock

^$663⁹⁹

More than 10 available

Ships Tomorrow

Lowest Price Guarantee

Winches

5.2 HP Motor
Rated Line Pull 9500 lbs.
Roller Fairlead
94 FT. 21/64" Cable
Free Spooling Clutch
Automatic/Mechanical Load Holding Brake
Remote Switch (12 ft. Lead)

Specifications
Rated Line Pull: 9,500 lbs (4309 kg)
Motor: Sealed 5.2 HP Series Wound
Gearing: 3-Stage Planetary
Gear Ratio: 218 to 1
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Clutch: Pull and Turn, Ergo
Brake: Mechanical, Automatic Load Holding
Rope: Wire 21/64" x 94' (8.3mm x 28m)
Hook: Heavy-Duty Clevis Pinned Latched
Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
Handheld Remote: 12' Rubber Sealed
Dimensions: 20.8" L x 6.3" W x 9.2 H (529mm L x 160mm W x 234.5mm H)
Drum Diameter: 2.5" (63.5mm)
Drum Length: 9" (228.6mm)
Installed Weight: 90 lbs (41kg)
Shipping Weight: 94 lbs (42kg)
Warranty: Limited 2-Year Warranty
Line Pull: 0 lbs (0 kgs) 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed
Line Pull: 9,500 lbs (4,309 kgs) 340 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed

An Efficient Solution For a Heavier Load

The Superwinch Tiger Shark Series Winch brings unmatched value, quality, and functionality to the entry-level winch market while outperforming the competition in all weather conditions. There's not a better intermediate planetary gear winch on the market.

Part TypeWinch

Product LineSuperwinch Tiger Shark Series Winches

BrandSUPERWINCH

Package Height13.0

Package Width13.0

Package Length23.0

Weight65.0 PG

Weight90 lb (40.816 kg)

Part CategoryAccessories

Mounting Hole Quantity4 holes

Remote12 ft. hand-held remote switch

Power OutYes

Motor Horsepower5.20 hp

Drive Gear3-stage planetary

Conforms To J706 StandardsYes

Winch Line TypeCable

BrakeYes

Volts12 volts

Winch Line IncludedYes

Winch Line Length (Ft.)95

Winch Line Diameter (In.)21/64

Pull Rating (Lbs.)9,500

Winch Line MaterialSteel

QuantitySold individually

Remote IncludedYes

Free-SpoolingYes

Mounting Pattern Length10 in (254 mm)

Winch StyleElectric

No Load Line Speed19.00 fpm

Jeep Jl1

Part FitmentUniversal

Winch Fairlead TypeRoller

Gear Reduction Ratio2181

Mounting Pattern Width4.5 in (114.3 mm)

Vendor Part Number1595200

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
