SUPERWINCHPART NUMBER: 846-1595201

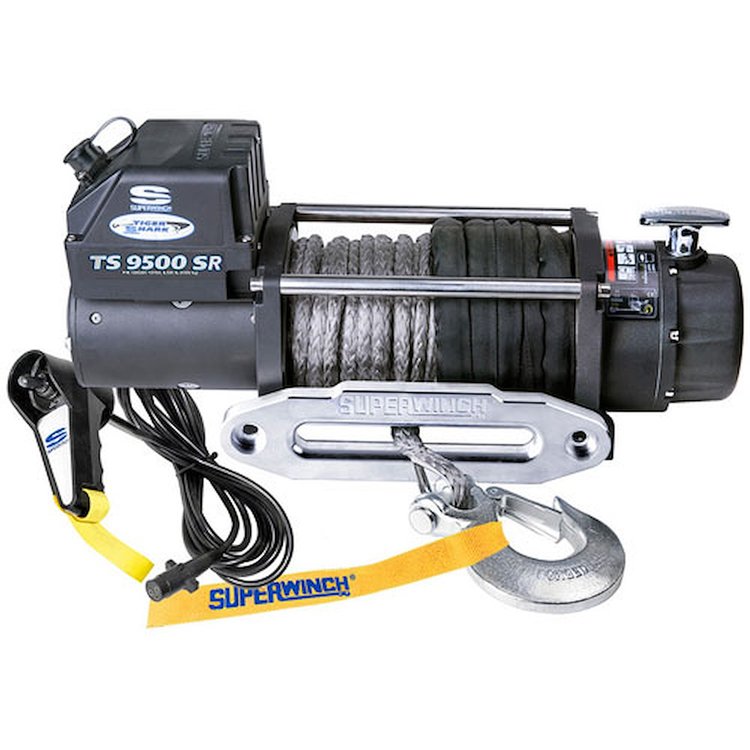

Tiger Shark 9500 SR 12V Series Winch

Name: Tiger Shark 9500 SR 12V Series Winch
Brand: SUPERWINCH
SKU: 846-1595201
Price: 875.99 USD
Availability: InStock

^$875⁹⁹

Ships Tomorrow

Lowest Price Guarantee

Winches

Rated Line Pull: 9,500 lbs
Motor: Sealed 5.2 HP Series Wound
Gearing: 3-Stage Planetary
Gear Ratio: 218:1
Synthetic Rope: 3/8" x 80'

Specifications:
Rated Line Pull: 9,500 lbs (4309 kg)
Motor: Sealed 5.2 HP Series Wound
Gearing: 3-Stage Planetary
Gear Ratio: 218:1
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Clutch: Pull and Turn, Ergo
Brake: Mechanical, Automatic Load Holding (in Motor)
Rope: Synthetic 3/8" x 80'
Hook: Heavy Duty Clevis Pinned Latched
Fairlead: Anodized Aluminum Hawse
Remote: 12' Rubber Sealed Hand-held
Dimensions: 20.8" L x 6.3" W x 9.2 H (529mm L x 160mm W x 234.5mm H)
Drum Diameter: 2.5" (63.5mm)
Drum Length: 9" (228.6mm)
Installed Weight: 59 lbs. (26.7kg)
Shipping Weight: 63 lbs (28.6 kg)
Warranty: Limited 2 Year Warranty
Line Pull: 0 lbs (0 kgs) 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed
Line Pull: 9,500 lbs (4,309 kgs) 340 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed
Lead Wires: 6' (1.8m) x 4 gauge (25mm² )

Part TypeWinch

BrandSUPERWINCH

Package Height13.0

Package Width13.0

Package Length23.0

Weight65.0 PG

Weight59 lb (26.757 kg)

Part CategoryAccessories

Mounting Hole Quantity4 holes

Remote12 ft. hand-held remote switch

Power OutYes

Motor Horsepower5.20 hp

Drive Gear3-stage planetary

Conforms To J706 StandardsYes

Winch Line TypeRope

BrakeYes

Volts12 volts

Winch Line IncludedYes

Winch Line Length (Ft.)80

Winch Line Diameter (In.)3/8

Pull Rating (Lbs.)9,500

Winch Line MaterialSynthetic

QuantitySold individually

Remote IncludedYes

Free-SpoolingYes

Mounting Pattern Length10 in (254 mm)

Winch StyleElectric

No Load Line Speed19.00 fpm

Jeep Jl1

Part FitmentUniversal

Winch Fairlead TypeHawse

Gear Reduction Ratio2181

Mounting Pattern Width4.5 in (114.3 mm)

Vendor Part Number1595201

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
