Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

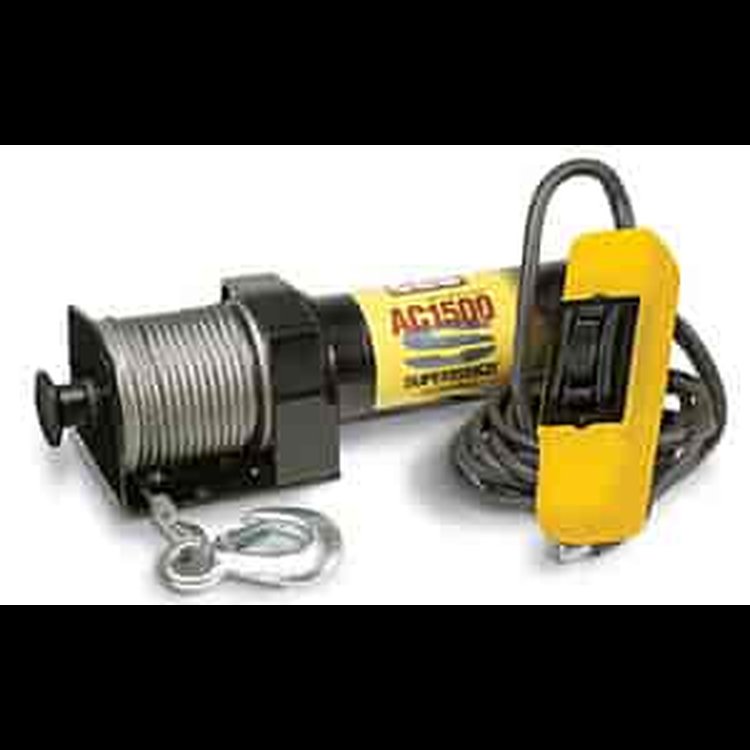

AC1500 Series Winch
- AC1500 Winch
- Rated Line Pull 1,500-lb.
- 0.6-HP 115V AC Motor
- Free Spooling Clutch
- Gear Ratio 153:1
- Wire Rope 3/16" x 35'
Specifications: - Gearing: Differential Planetary
- Brake: Mechanical & Dynamic
- Clutch: Free-Spooling, Pull & Turn
- Remote: 6' Sealed Hand-Held
- Drum Diameter: 1.25"
- Drum Lenght: 2.96"
- Dimensions: 13.875" L x 3.9" W x 4.1" H
- Installed Weight: 18.0-lbs.
Part TypeWinch
BrandSUPERWINCH
Package Height9.1
Package Width11.9
Package Length20.4
Weight33.24 PG
Weight22 lb (9.977 kg)
Part CategoryAccessories
Winch Line IncludedYes
Winch Line Length (Ft.)35
Winch Line Diameter (In.)3/16
Pull Rating (Lbs.)1,500
Mounting Hole Quantity2 holes
Winch Line MaterialSteel
RemoteWired remote
QuantitySold individually
Power OutYes
Remote IncludedYes
Free-SpoolingYes
Winch StyleElectric
Motor Horsepower0.60 hp
Drive GearPlanetary
Conforms To J706 StandardsNo
Winch Line TypeCable
BrakeYes
Winch Fairlead TypeHawse
Volts120 V
Gear Reduction Ratio153:01:00
Vendor Part Number1715000
Package Qty1
Package TypeEA
