Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

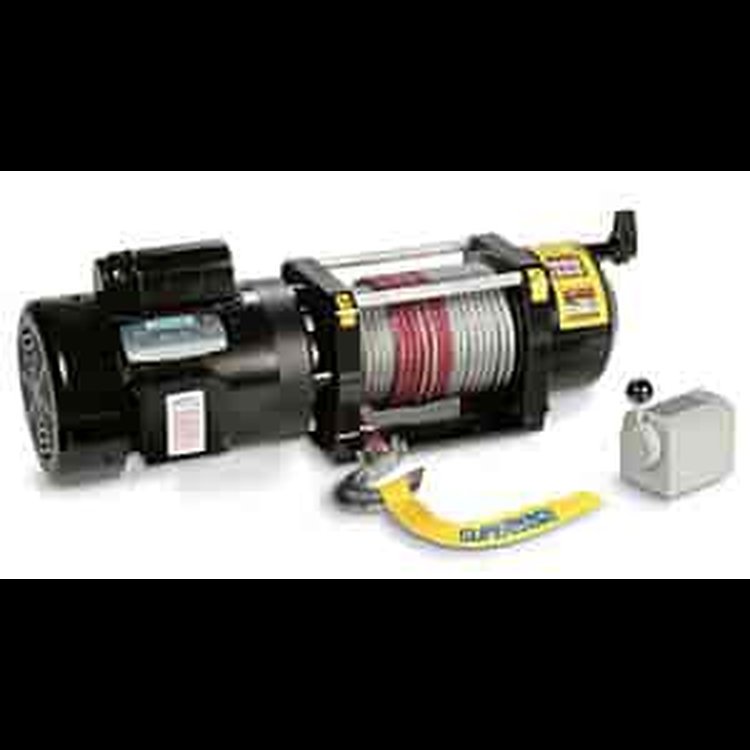

AC3000 Series Winches
- AC3000 Winch
- Rated Line Pull 3,000-lb.
- 1.0-HP AC Motor
- Free Spooling Clutch
- Gear Ratio 253:1
- Wire Rope 5/16" x 100'
Specifications: - Gearing: 3-Stage Planetary
- Brake: Automatic in the Drum
- Clutch: Free-Spooling, 1/4 Turn Lever
- Remote: 6' Sealed Hand-Held
- Drum Diameter: 2.5"
- Drum Lenght: 7.0"
- Dimensions: 25.25" L x 8.6" W x 9.2" H
- Installed Weight: 78.0-lbs.
Part TypeWinch
BrandSUPERWINCH
Package Height15.0
Package Width15.0
Package Length31.0
Weight88.0 PG
Weight93 lb (42.177 kg)
Part CategoryAccessories
Speed1
Winch Line IncludedYes
Winch Line Length (Ft.)100
Pull Rating (Lbs.)3,000
Mounting Hole Quantity2 holes
Winch Line MaterialSteel
RemoteWired remote
QuantitySold individually
Power OutYes
Remote IncludedYes
Free-SpoolingYes
Winch StyleElectric
No Load Line Speed10.50 fpm
Motor Horsepower1.00 hp
Drive GearPlanetary
Conforms To J706 StandardsNo
Winch Line TypeCable
BrakeYes
Winch Fairlead TypeNone
Volts120/240 V
Gear Reduction Ratio253:01:00
Vendor Part Number1730000
Package Qty1
Package TypeEA
