Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

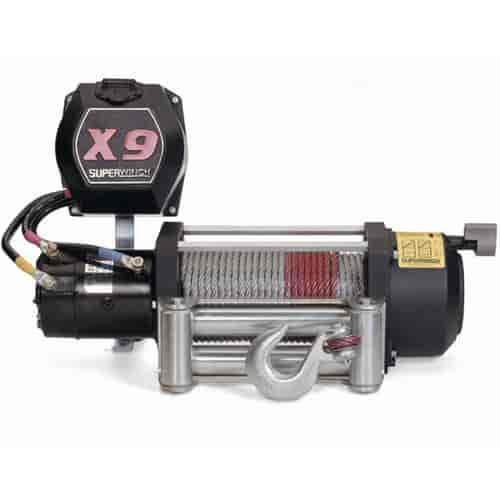

X9 Series Winch
- X9 Series Winch
- Rated Line Pull 9,000 lb.
- 4.2 HP Motor
- Gear Ratio 253:1
- Wire Rope 5/16'' x 100'
- 12VDC
Features: - 12 Volt DC 4.2 horsepower series wound motor
- 1/4 turn free spooling clutch
- 38.2 FPM line speed
- 100 feet of 5/16 cable
- 15 foot remote control
- Heavy duty E-clips for max clearance on heavy duty roller fairlead
Dimensions: - Length - 22.88'
- Depth - 6.75'
- Height - 6.63'
- Weight - 82 lbs.
Performance: - Motor Amp Draw - 420 12V
- Line Speed- 2.5 FPM
Part TypeWinch
BrandSUPERWINCH
Package Height9.3
Package Width16.0
Package Length28.5
Weight82.0 PG
Weight82 lb (37.188 kg)
Part CategoryAccessories
Winch Line IncludedYes
Winch Line Length (Ft.)100
Pull Rating (Lbs.)9,000
Mounting Hole Quantity4 holes
Winch Line MaterialSteel
QuantitySold individually
Power OutYes
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed32.00 fpm
Motor Horsepower4.20 hp
Drive GearPlanetary
Conforms To J706 StandardsNo
Remote (Ft.)15 hand-held remote switch
Winch Line TypeCable
BrakeYes
Winch Fairlead TypeRoller
Volts12 volts
Gear Reduction Ratio253:01:00
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number1901C
Package Qty1
Package TypeEA
