Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

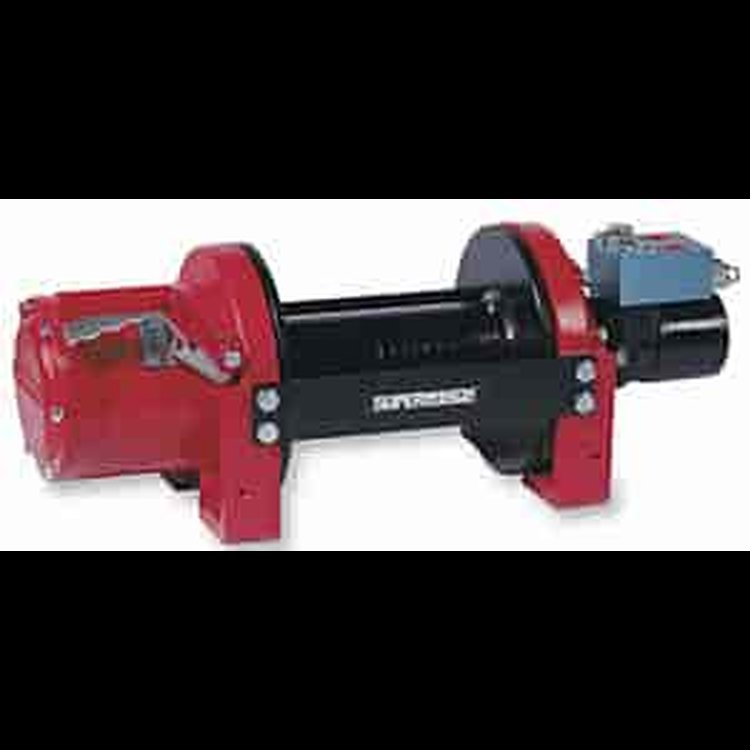

HP Series Winches (2 Stage Planetary Drive)
- HP Series Hydraulic Winch
- Rated Line Pull 13,000-lb.
- Short Drum 10"
- Gear Ratio 16:1
- High Torque Motor
- Line Speed 30 FPM
- 2 Stage Planetary Differential
- Free-Spooling Clutch-Manual Release Handle
Additional Specifications: - Max Oil Pressure 2,000 psi
- Brake - Integral, Spring Applied, Hydraulic Released, Full Load Holding
- Recommended Wire Rope - 7/16" x 214'
- Drum Diameter - 4.0"
- Drum Length - 10"
- Dimensions - 28" L x 11" D x 10" H
- Installed Weight - 138-lbs.
Part TypeWinch
BrandSUPERWINCH
Part CategoryAccessories
Vendor Part Number5370
Package Qty1
Package TypeEA
