Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

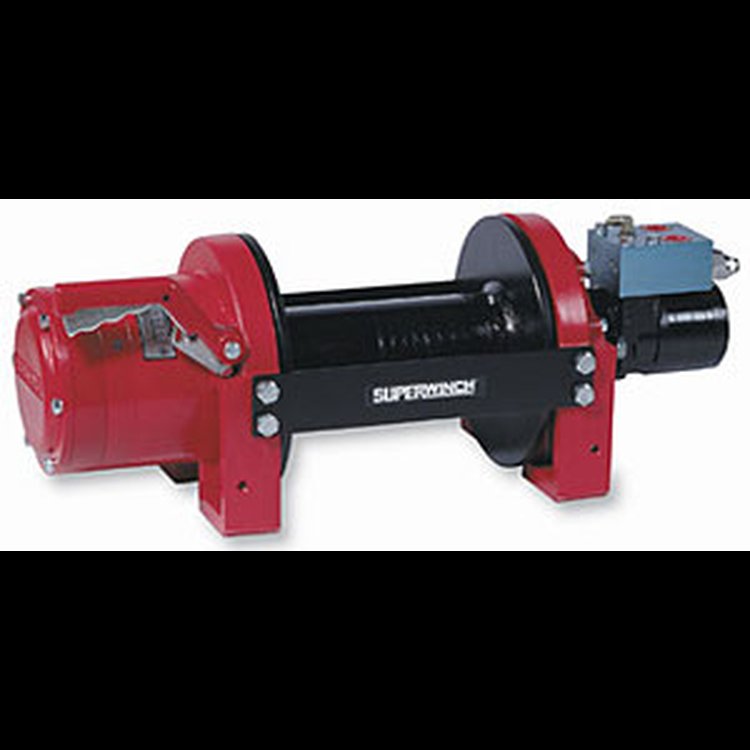

HP Series Winches (2 Stage Planetary Drive)
- HP Series Hydraulic Winch
- Rated Line Pull 15,000-lb.
- Long Drum 11.4"
- Gear Ratio 16:1
- High Torque Motor
- Line Speed 27 FPM
- 2 Stage Planetary Differential
- Free-Spooling Clutch-Pneumatic Release
Additional Specifications: - Max Oil Pressure 2,000 psi
- Brake - Integral, Spring Applied, Hydraulic Released, Full Load Holding
- Recommended Wire Rope - 1/2" x 184'
- Drum Diameter - 4.0"
- Drum Length - 11.4"
- Dimensions - 29.4" L x 11" D x 10" H
- Installed Weight - 129-lbs.
BrandSUPERWINCH
Part CategoryAccessories
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
