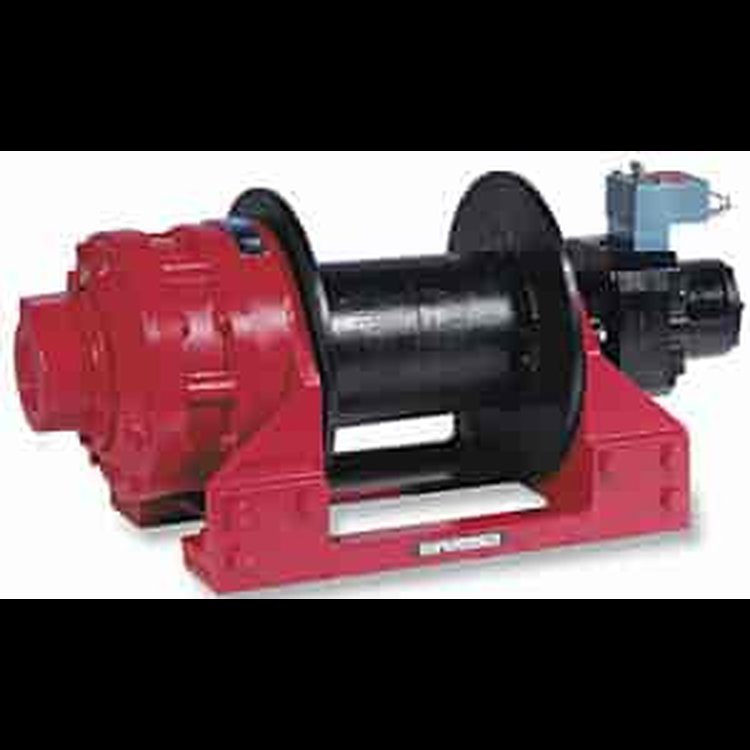

Superwinch Heavy Duty Hydraulic Winches

Name: Superwinch Heavy Duty Hydraulic Winches
Brand: SUPERWINCH
SKU: 846-5440B
Price: 5276.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

HP Series Winches (2 Stage Planetary Drive)

Rated Line Pull 20,000-lb.
Short Drum 10"
Gear Ratio 36:1
High Torque Motor
Line Speed 34 FPM
2 Stage Planetary Differential
Spring Applied, Pneumatic Free-Spooling Release

Additional Specifications:
Max Oil Pressure 2,500 psi
Brake - Multi-Disc Type Brake, Spring Applied, Hydraulic Released, Full Load Holding
Recommended Wire Rope - 5/8" x 160'
Drum Diameter - 7.5"
Drum Length - 10"
Dimensions - 35.2" L x 17" D x 16.2" H
Installed Weight - 436-lbs.

Part TypeWinch

BrandSUPERWINCH

Part CategoryAccessories

Vendor Part Number5440B

Package Qty1

Package TypeEA
