Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

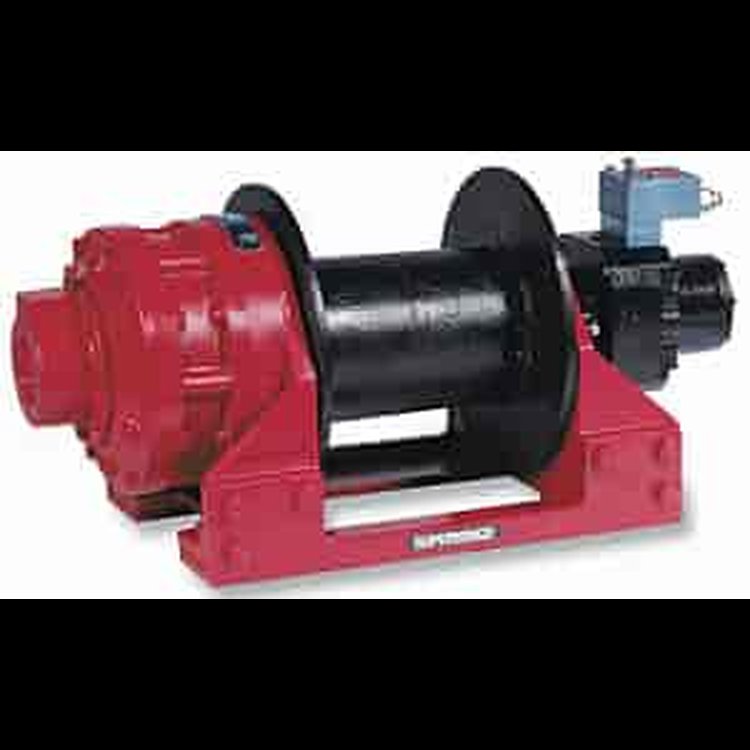

HP Series Winches (2 Stage Planetary Drive)
- HP Series Hydraulic Winch
- Rated Line Pull 25,000-lb.
- Long Drum 11.69"
- Gear Ratio 36:1
- High Torque Motor
- Line Speed 28 FPM
- 2 Stage Planetary Differential
- Spring Applied, Pneumatic Free-Spooling Release
Additional Specifications: - Max Oil Pressure 2,500 psi
- Brake - Multi-Disc Type Brake, Spring Applied, Hydraulic Released, Full Load Holding
- Recommended Wire Rope - 11/16" x 250' or 3/4" x 160'
- Drum Diameter - 7.5"
- Drum Length - 11.69"
- Dimensions - 35.2" L x 17" D x 16.2" H
- Installed Weight - 436-lbs.
- The Superwinch line of hydraulic winches provides you with a continuous duty solution to your winching requirements. They were designed with the toughest commercial/industrial applications in mind. Available in a full range of planetary and worm-gear drives with capabilities from 8,000 to 30,000 pounds. These hydraulic winches are built to JAE 706 standards and are CE certified. Most models are available with manual or pneumatic Free-Spooling, load holding brakes, and LCV (Load Control Valve) to give you precise control of your load. When the job is on the line, look no further than Superwinch.
- Rugged High Torque Motors
- Gear Ratios 16:1-54:1
- 2 Stage Planetary or Worm-Gear Drives
- Rated Line Pull 8,000-lbs. to 30,000-lbs.
- All Built to JAE 706 Standards and are CE Certified
Features:
Part TypeWinch
Product LineSuperwinch Heavy Duty Hydraulic Winches
BrandSUPERWINCH
Part CategoryAccessories
Vendor Part Number5450B
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
