Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

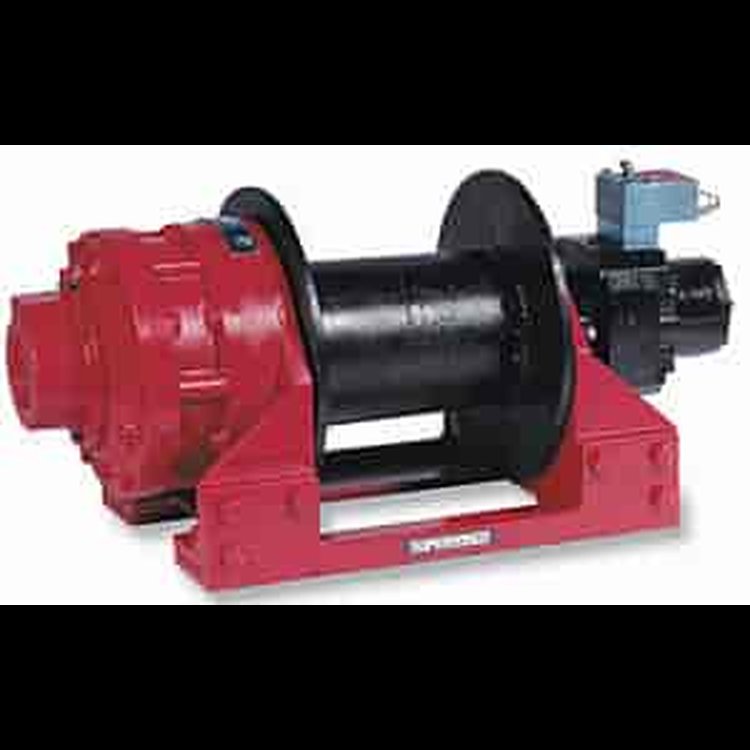

HP Series Winches (2 Stage Planetary Drive)
- HP Series Hydraulic Winch
- Rated Line Pull 30,000-lb.
- Long Drum 11.69"
- Gear Ratio 36:1
- High Torque Motor
- Line Speed 23 FPM
- 2 Stage Planetary Differential
- Spring Applied, Pneumatic Free-Spooling Release
Additional Specifications: - Max Oil Pressure 2,500 psi
- Brake - Multi-Disc Type Brake, Spring Applied, Hydraulic Released, Full Load Holding
- Recommended Wire Rope - 5/8" x 250' or 3/4" x 160'
- Drum Diameter - 7.5"
- Drum Length - 11.69"
- Dimensions - 35.3" L x 17" D x 16.2" H
- Installed Weight - 436-lbs.
Part TypeWinch
BrandSUPERWINCH
Part CategoryAccessories
Vendor Part Number5460B
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
