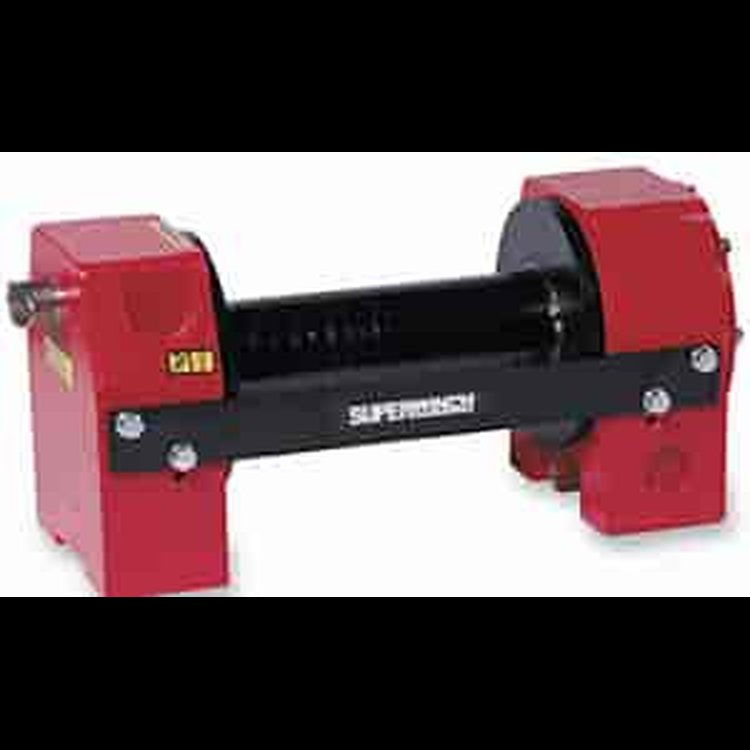

HW Series Winches (Wormwheel Drive)
- HW Series Hydraulic Winch
- Rated Line Pull 10,000-lb.
- Long Drum 11.35"
- Gear Ratio 48:1
- High Torque Motor
- Line Speed 16 FPM
- H/D, Steel Centered Aluminum/Bronze Wormwheel
- Free Spooling Clutch - Manual Release
Additional Specifications: - Max Oil Pressure 1,800 psi
- Brake - Irreversible Worm Set, for Substantial Reliable Braking Action
- Recommended Wire Rope - 7/16" x 129' or 1/2" x 100'
- Drum Diameter - 3.5"
- Drum Length - 11.35"
- Dimensions - 22" L x 16.25" D x 10" H
- Installed Weight - 112-lbs.
- The Superwinch line of hydraulic winches provides you with a continuous duty solution to your winching requirements. They were designed with the toughest commercial/industrial applications in mind. Available in a full range of planetary and worm-gear drives with capabilities from 8,000 to 30,000 pounds. These hydraulic winches are built to JAE 706 standards and are CE certified. Most models are available with manual or pneumatic Free-Spooling, load holding brakes, and LCV (Load Control Valve) to give you precise control of your load. When the job is on the line, look no further than Superwinch.
- Rugged High Torque Motors
- Gear Ratios 16:1-54:1
- 2 Stage Planetary or Worm-Gear Drives
- Rated Line Pull 8,000-lbs. to 30,000-lbs.
- All Built to JAE 706 Standards and are CE Certified
Features:
Part TypeWinch
Product LineSuperwinch Heavy Duty Hydraulic Winches
BrandSUPERWINCH
Part CategoryAccessories
Vendor Part Number7085A
Package Qty1
Package TypeEA
