Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

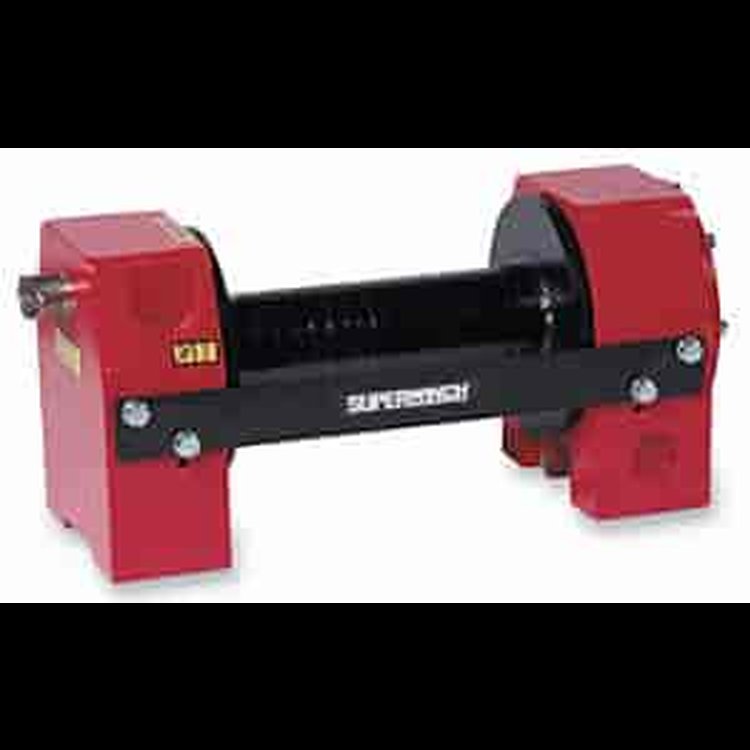

HW Series Winches (Wormwheel Drive)
- HW Series Hydraulic Winch
- Rated Line Pull 12,000-lb.
- Long Drum 11.35"
- Gear Ratio 48:1
- High Torque Motor
- Line Speed 12 FPM
- H/D, Steel Centered Aluminum/Bronze Wormwheel
- Free Spooling Clutch - Manual Release
Additional Specifications: - Max Oil Pressure 1,800 psi
- Brake - Irreversible Worm Set, for Substantial Reliable Braking Action
- Recommended Wire Rope - 7/16" x 129' or 1/2" x 100'
- Drum Diameter - 3.5"
- Drum Length - 11.35"
- Dimensions - 22" L x 16.25" D x 10" H
- Installed Weight - 112-lbs.
BrandSUPERWINCH
Part CategoryAccessories
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
