Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

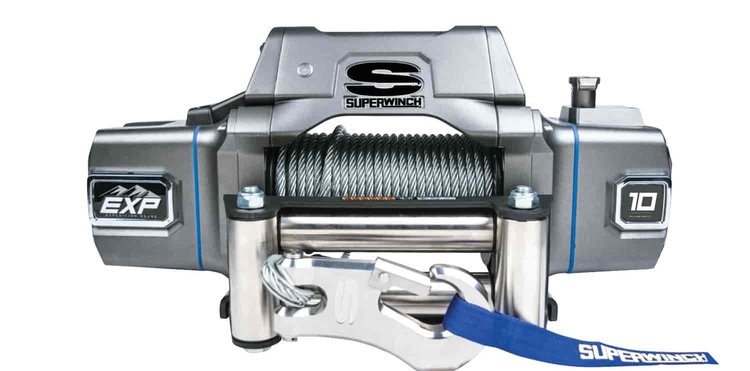

10,000-lb EXP Series Winches
EXP Series WinchRated Line Pull 10,000-lb. Series Wound Motor Auto-Engage Clutch Gear Ratio 154.29:1 High Strength Roller Fairlead 15' Custom Remote 100' Wire Rope 2 Fused Power Ports (60amp)
- Capacity: Available in : 8,000, 10,000 and 12,000lbs
- Your choice of rope: Available with Synthetic rope or Wire cable
- 12v or 24v
- 2 Pitcatinny Rails: for accessory mounting
- LED task lighting: Makes nighttime operation easy
- Fully Potted Electronics: for extreme use
- Auto-engage clutch: re-engages the gears at the tap of the winch controller.
Part TypeWinch
BrandSUPERWINCH
Weight110 lb (49.887 kg)
Part CategoryAccessories
Speed1
Winch Line IncludedYes
Winch Line Length (Ft.)100
Pull Rating (Lbs.)10,000
Mounting Hole Quantity4 holes
Winch Line MaterialSteel
Remote15 ft. hand-held remote switch
QuantitySold individually
Power OutYes
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed46.00 fpm
Drive Gear3-stage planetary
Conforms To J706 StandardsYes
Jeep Jl1
Winch Line TypeCable
BrakeYes
Winch Fairlead TypeRoller
Volts12 volts
Gear Reduction Ratio154.291
Mounting Pattern Width4.5 in (114.3 mm)
Package Qty1
Package TypeEA
