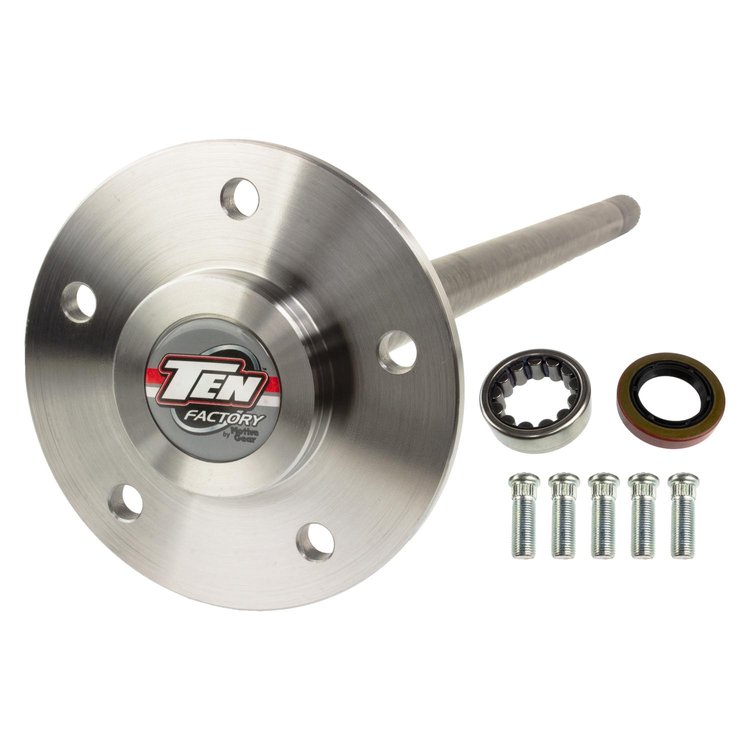

Drive Axle Shaft Assembly
  • 1970-1981 Chevy C10 Pickup/C10 Suburban
  • GM 8.875
  • Precision-Machined Splines Engage Differential Side Gears and Wheel Hubs
  • Heat-Treated Alloy Steel Shaft Handles Maximum Rated Axle Torque

    The Drive Axle Shaft Assembly from TEN Factory is a direct-fit replacement engineered to OEM specifications, restoring correct fit and function on GM 8.875 applications without custom fitting.

    Technical Specifications:

    • Confirmed Fitment for 1970-1981 Chevy C10 Pickup/C10 Suburban.
    • Precision-Machined Splines Engage Differential Side Gears and Wheel Hubs.
    • Heat-Treated Alloy Steel Shaft Handles Maximum Rated Axle Torque.
  • Part TypeAxle Shaft Assembly
    BrandTEN FACTORY
    Package Height8.5
    Package Width8.75
    Package Length41.75
    Weight23.3 PG
    Part CategoryReplacement Parts
    Shaft Length31.3125 in.
    Differential Case Design TypeGM 8.875 Truck
    Inboard Spline Quantity30
    PositionRight (Passenger)
    Shaft Material1541 Manganese
    Part FitmentDirect Fit
    Wheel Bolt Pattern Size5 x 5 in.
    ApplicationGM 8.875 Truck (12-Bolt Truck)
    Vendor Part NumberMG27109
    Package Qty1
    Package TypeEA
