Breakdown of Included Items

Includes:

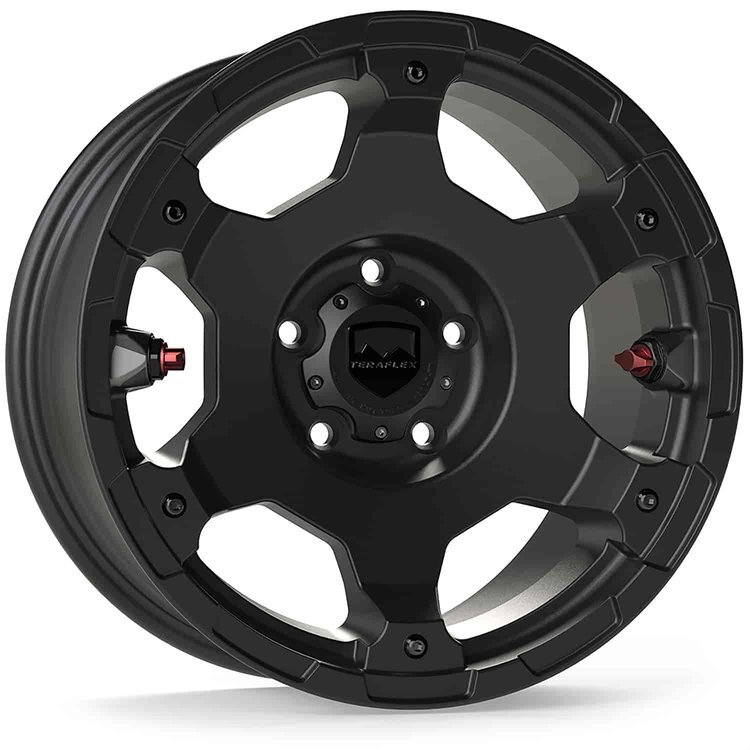

• Nomad Off-Road Wheel (1056059)
• Center Cap (1056004)
• Schrader Valve Stem Housing and Cap (1056001)
• Air Deflator Valve (1056000)

Features & Benefits:

• Cast from heat treated A356-T6 aluminum
• Strong enough to handle 40 in. tires
• Locking bead seat knurling allows for safely running lower tire pressures
• Lack of “water troughs” prevents pooling
• Dual-stage clear powder coat with UV inhibitors
• Easy to clean
• Modular System accepts Air Deflator, Schrader valve, or Plug
• Symmetrical valve holes for balance
• Fully encapsulated Schrader valves to keep out contaminants

Air Deflator Valve:

• Air Deflator Valve allows you to quickly deflate your tires to a selectable pressure
• Adjustment screw sets spring preload which allows pressure to be set as low as 10 psi.
• Releases up to 40 times more air than Schrader valve for quick easy deflation
• O-ring seal makes sure air blows contaminates away from air release orifices
• PTFE O-ring can be changed without disassembly
• O-ring seals pressures up to 3,500 psi.
• Black and red anodized finish

Note(s):

• NOT recommended for use with balance beads or flat tire sealants
• Replacement center cap 5 x 5” (part number 446-1056004)
