• Valve Made from High-Temperature NiCrFe-Based Alloy
• Nitronic 60 Stainless Steel Valve Seat & Valve Bushing
• Flows 330 cfm at 1 psi Differential Pressure
• Nomex-Reinforced Actuator Diaphragm
• 347 Stainless Steel Valve Housing
• Stainless Steel Hardware
• Stainless Steel Actuator Spring Provides Consistent Pressure & Resists Relaxing up to 900° F
• Click for Wastegate Spring Pressure Chart or Exploded View of V60 Wastegate
• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black)

Included with Every Tial V60 Series Wastegate:

• V60 Wastegate Assembly
• V60 Valve Seat
• Two TiAL Air Fittings
• Inlet Flanges and Clamps
• Outlet Flanges and Clamps

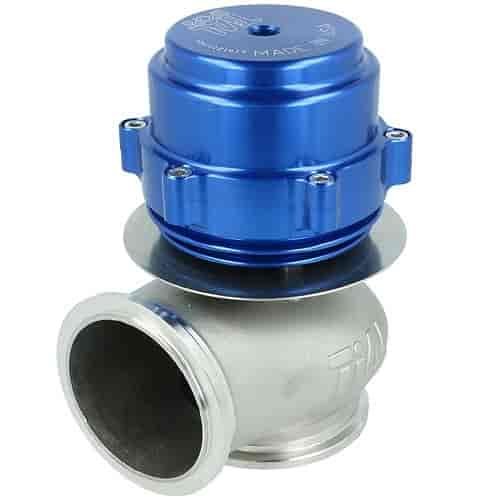

The TiAL Sport V60 Series 60mm Wastegates are engineered for high-boost turbocharged applications that demand precise boost control and maximum airflow capacity. Designed for serious performance enthusiasts, these 60mm external wastegates provide stable pressure regulation in high-horsepower street and race builds. When managing elevated boost levels in turbocharged engines, a properly sized external wastegate is critical to maintaining consistent performance, protecting engine components, and optimizing overall power delivery.

The V60 Series is built to handle large-frame turbo systems and high exhaust flow environments, making it a go-to choice for builders pushing substantial horsepower. Whether you’re tuning a drag racing machine or a high-performance street car, TiAL Sport V60 Series 60mm Wastegates deliver the durability and responsiveness needed for reliable forced induction performance.

Performance Benefits & Key Features

TiAL Sport V60 Series 60mm Wastegates are designed with a large 60mm valve to provide exceptional exhaust flow control, helping regulate boost pressure in high-output turbo systems. Performance enthusiasts often evaluate wastegates based on valve diameter, material construction, heat resistance, and boost control precision. The V60’s high-temperature alloys and precision-machined components ensure reliable operation under extreme exhaust heat and pressure.

A properly sized 60mm wastegate is especially important in applications with large turbochargers, high airflow demands, and aggressive boost targets. The increased valve area helps prevent boost creep and maintains stable boost levels across the RPM range. This contributes to improved throttle response, safer air/fuel ratios, and consistent horsepower output.

These wastegates are ideal for drag racing builds, roll racing applications, high-boost street performance cars, and competition-focused vehicles. When paired with compatible boost control systems and turbo manifolds, the V60 Series supports high torque capacity and sustained performance under load.

Fitment, Compatibility & Applications

The TiAL Sport V60 Series 60mm Wastegates are compatible with a wide range of turbocharged setups across GM, Ford, and Mopar platforms. Popular applications include turbocharged Chevrolet Camaro, Ford Mustang, Dodge Challenger, and custom import or domestic builds configured for external wastegate mounting.

Proper fitment depends on exhaust manifold design and turbo system layout. These wastegates are intended for aftermarket turbo installations rather than stock applications, making them ideal for custom fabrication projects and dedicated race vehicles.

If you’re building a high-boost turbo system and demand precise boost control, explore the TiAL Sport V60 Series 60mm Wastegates at JEGS and equip your forced induction setup with race-proven reliability and performance engineering.
