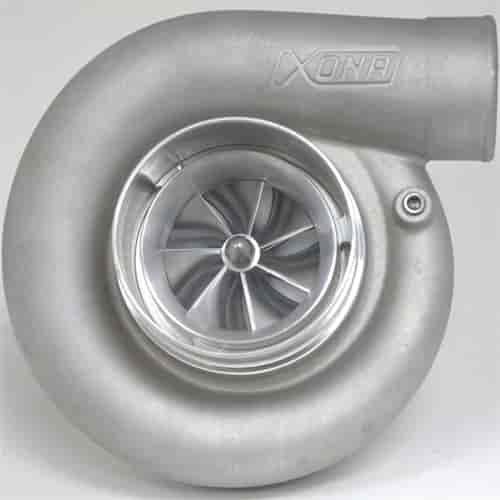

Xona Rotor XR11568 X4C Super Core Assembly
Items You Need
- Xona Rotor XR11568 X4C Super Core Assembly
- 115 lb/min. HTZ Compressor Wheel
- 76 mm Inducer / 105 mm Exducer
- 76/68 mm Turbine Wheel
- 600-1210 HP
- Dual Ceramic Ball Bearing
- Lightweight Billet Stainless Steel Bearing Housing
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Reliable Turbocharged Power Adders

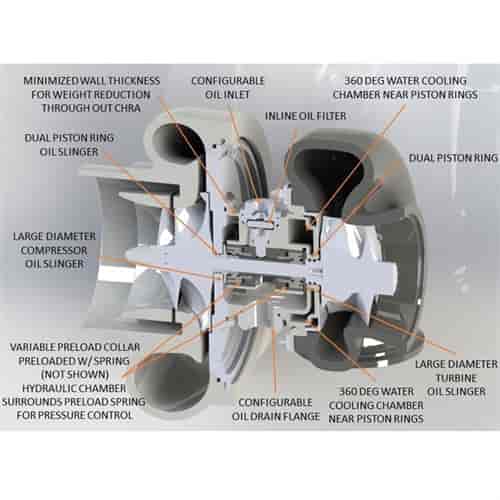

Super Core Assemblies by Xona Rotor feature the most robust and durable technologies available for turbochargers today. The heart of a Xona Rotor consists of a stainless steel housing containing a hybrid dual ceramic ball bearing system. Xona uses a proprietary variable angular preload contact bearing technology that provides consistent and sufficient preload, providing long-lasting bearing life. Available in many different sizes and trims, Xona Super Core assemblies are designed and manufactured in the USA for superior quality.
Show More
Features:
- Designed and manufactured in the US
- Hybrid dual ceramic ball bearing with steel race
- Variableble preload angular bearing system
- High-strength stainless steel bearing housing
- Extended water jacket provides water cooling that surrounds the turbine seal ring area
- Twin ring shaft sealing at compressor and turbine ends for resisting gas intrusion and oil loss
- An integrated oil filter element
- Modular oil drain flange for different bolt spacing
- Includes compressor housing, turbine housing sold separately
