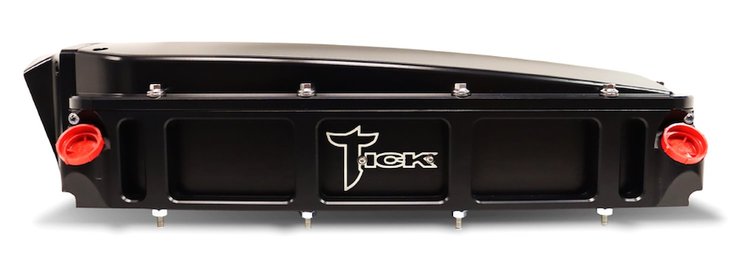

Tick Performance TP009853-1-BLK Features:

This new design provides an even lower height while retaining up to 1,500hp rating. Along with improved -12 angled inlets, that now clear taller fuel rails.

Manufactured in North Carolina, USA here at Tick Performance, Tick Performance Billet Air-to-Water Intercooler gives you all the benefits of an A2W intercooler without the hassle of extra plumbing! This custom fabricated intercooler bolts directly to any Holley Hi-Ram or Lo Ram Intake Manifold and can efficiently support up to 1,500 Horsepower!

The new billet design offers a superior quality and appearance without an increase in price. The intercooler features four -12ORB (AN) Female inlet/outlets providing you with options on plumbing. See the drop-down menu for block-off plugs.

Specs

• Supports up to 1,500HP

• 100% made and hand assembled in North Carolina, USA

• 4 Female -12 AN O-ring female inlet/outlets

• Billet 6061-T6 aluminum construction

• Additional discount available for purchasing a Holley Manifold at the same time! Contact us for details.

Includes

• High quality mounting hardware

• O-ring sealing

• Integrated upper intake manifold

• LS Style Throttle body Outlet

Overall Heights

• Overall Thickness 4.75 in

• Holley LS1 Lo-Ram Total Without Intercooler 5.17 in

Combo Heights

• Holley LS1 Lo-Ram Lower Intake With Intercooler 9.92 in

• Holley LS Hi-Ram Lower Intake With Intercooler 13.17 in

Measurements are based on the specs provided by Holley and include the tallest point of the intakes using the front-mount throttle body hats. The intercoolers will work with any Holley ram hat.

Please don't hesitate to contact Tick Performance sales consultants with any questions you may have!

See Dyno Testing Here; 100hp Gains!

***Please note that Tick Performance do not recommend coating Tick Performance intercooler with any form of coating that requires high temperature curing.***

***Will NOT Fit Holley Mid Ram Manifolds***

***The Gen V LT Low Ram does require the lower portion to be machined to clear Tick Performance intercooler.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
