TICK PERFORMANCEPART NUMBER: 324-J324093

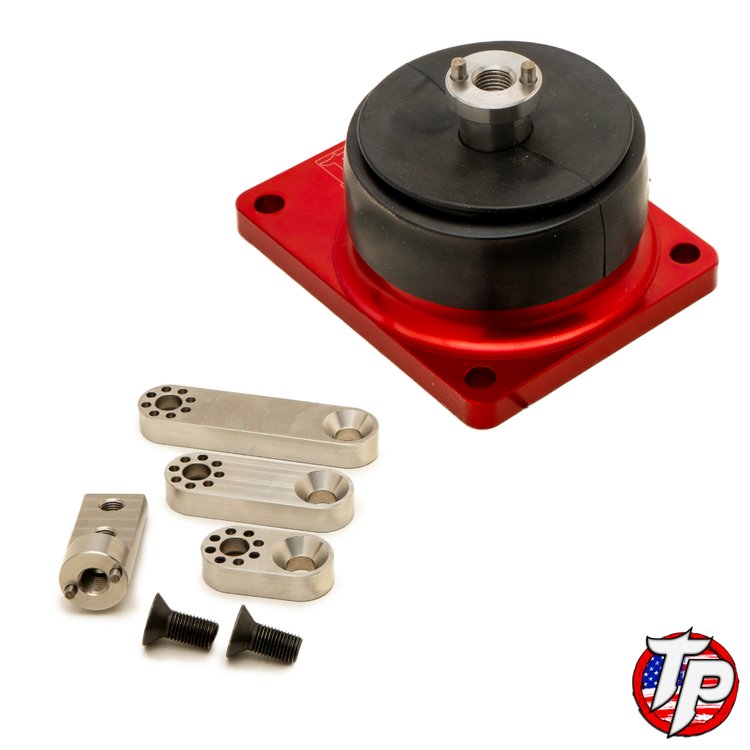

Revolver Lock Short Throw Shifter for Tremec T56 Magnum Mid-Shift, 48-Position Adjustable, 1.5 in. Offset [Red Anodized]
$44999
Short Throw Revolver Lock ShifterTremec T56 Magnum Mid-Shift 48-Position Adjustable Revolver Lock 1.5 in. Offset Hurst-Pattern 3/8-24 Stick Flange Red Anodized Billet 6061 Aluminum Base Knob Not Included

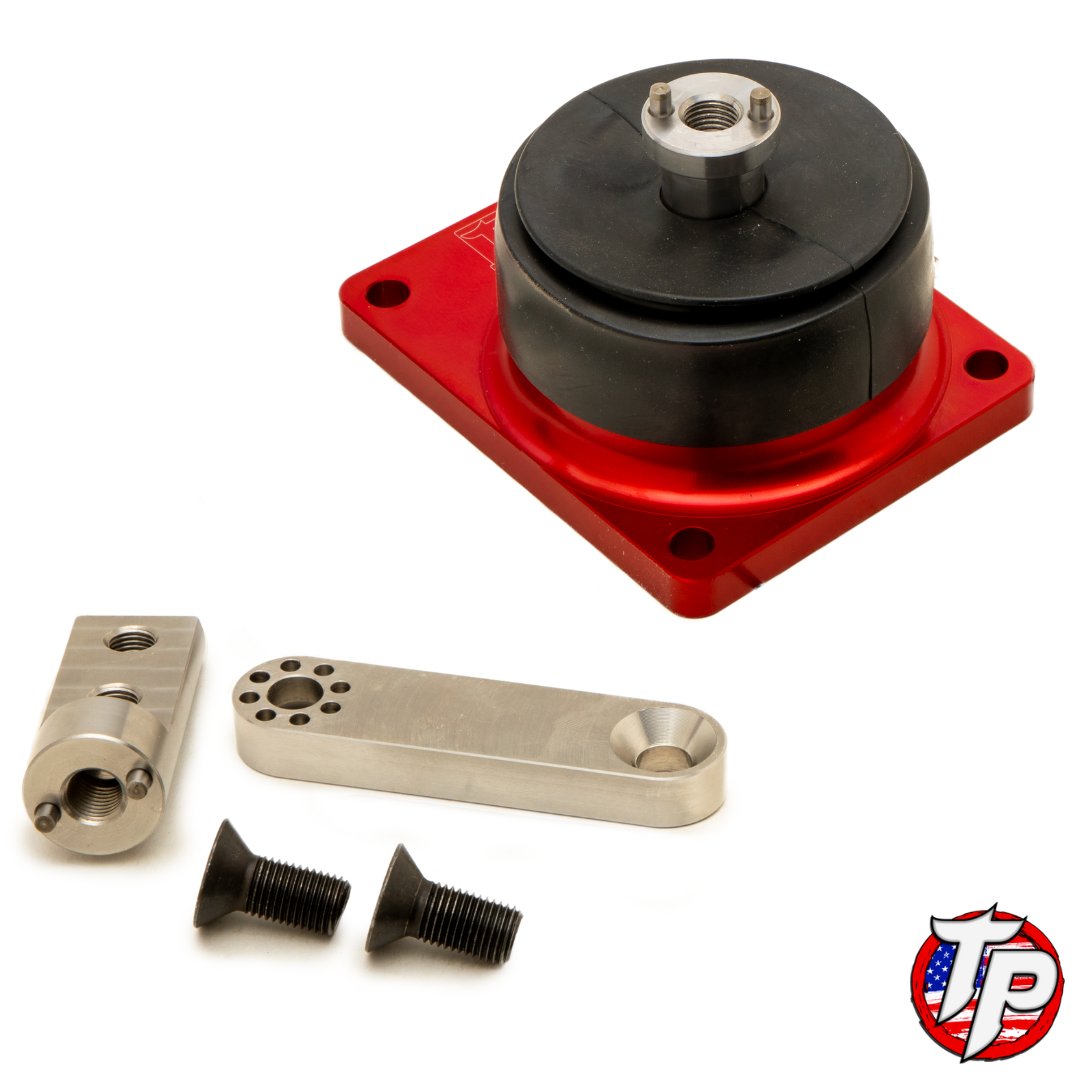

The Tick Performance TCKSTS-004RL-15 is a short throw shifter for Tremec T56 Magnum Mid-Shift Transmissions built around Tick's Revolver Lock adjustment system. The stick offset indexes every 22.5 degrees, giving 16 rotational positions per offset length, so the lever can be placed exactly where the driver wants it. This version ships with the 1.5 in. offset.
Product Details:
- Fits Tremec T56 Magnum Mid-Shift Transmissions.
- Revolver Lock system offers 48 total shifter positions with 16 rotational locations per offset.
- Includes the 1.5 in. offset and offset adapter.
- Stick mounting flange uses the Hurst two-bolt pattern with 3/8-24 threads.
- Billet 6061 aluminum base with red anodized finish.
- Bearing-grade steel pivot points with lifetime grease and a rebuildable bearing cartridge.
- One-piece reusable locking O-ring seal replaces silicone gasket sealer.
- Includes (2) 7/16-20 flat head bolts, (4) locator pins and all necessary hardware.
- Requires an aftermarket shift knob, sold separately.
Part TypeManual Transmission Shifter Assembly
BrandTICK PERFORMANCE
Package Height5.0
Package Width10.0
Package Length12.0
Weight10.0 PG
Part CategoryPerformance Parts
Universal Or Specific FitSpecific
Hardware IncludedYes
Trans ModelTremec T56 Magnum
Shifter StyleShort Throw
Part FitmentSemi Universal
FinishRed Anodized
Knob IncludedNo
Vendor Part NumberTCKSTS-004RL-15
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
