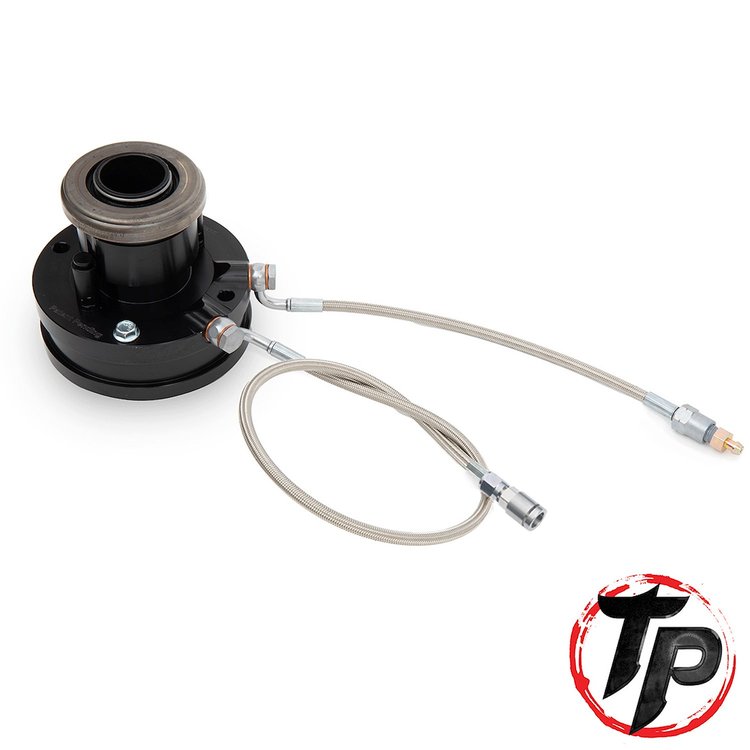

Tick Performance TCKCH-3200 Features:

Designed specifically for the C6, this comprehensive Clutch Release Bearing kit ensures seamless integration and top-notch performance fits 2005-2013 C6 Corvette Base Model & Z06 "NOT FOR ZR1". The kit includes all lines needed to connect into your factory system or to connect to your Tick Performance adjustable master cylinder kit.

Includes

• Feed Line 90 Degree Banjo to -4AN Straight

• TCKCH-2108 fitting for connection to OE Disconnect

• Bleeder Line 8” long 90 degree banjo to speed bleed fitting

• Optional bleeder line is 48” long with the same fittings

• Mounting Hardware

About Tick Performance Billet Clutch Release Bearing Design

Our new Hydraulic Release Bearings (Clutch Release Bearings) are the result of years of expertise in clutch hydraulics. These components are not just another item on the market; they are designed to be the BEST, eliminating the shortcomings of both current aftermarket offerings and the OE cylinder. The all billet design eliminates flimsy plastic components from your clutch hydraulic system while the hard anodizing provides the ultimate in corrosion protection. All of Tick Performance release bearings include HD seals and dust wiper. These seals will work with any brake fluid currently on the market! These release bearings were designed to withstand the punishment of the most extreme racing environments as well as the task of daily driving! These release bearings were also designed with convenience in mind. They will install as close to OEM as possible. Meaning line lengths, connections, mounting location, etc... They are also intended to be shimmed the same way as the OE release bearings. Clutch Release Bearing install tolerance must be between .125"-.150"

This slave also utilizes Tick Performance Patent Pending tension system to ensure constant contact between the pressure plate levers and the release bearing. This guarantees that there will never be an "air gap" between the bearing and levers. For more info on why this is important, see Tick Performance tech videos!

Benefits:

• Dual Step Support: Adds rigidity and stability under load.
• Increased Surface Area: Provides more stability than other aftermarket designs.
• Dust Wiper: Prevents contaminants from entering the hydraulic system.
• Tension Spring: Maintains contact between the release bearing and pressure plate fingers for consistent clutch disengagement and prolonged transmission life.
• Simple Shim Measuring: Includes a "lock out key" for easy and precise measurements.
• Corrosion Resistance: Hard anodized for durability and reduced surface wear.

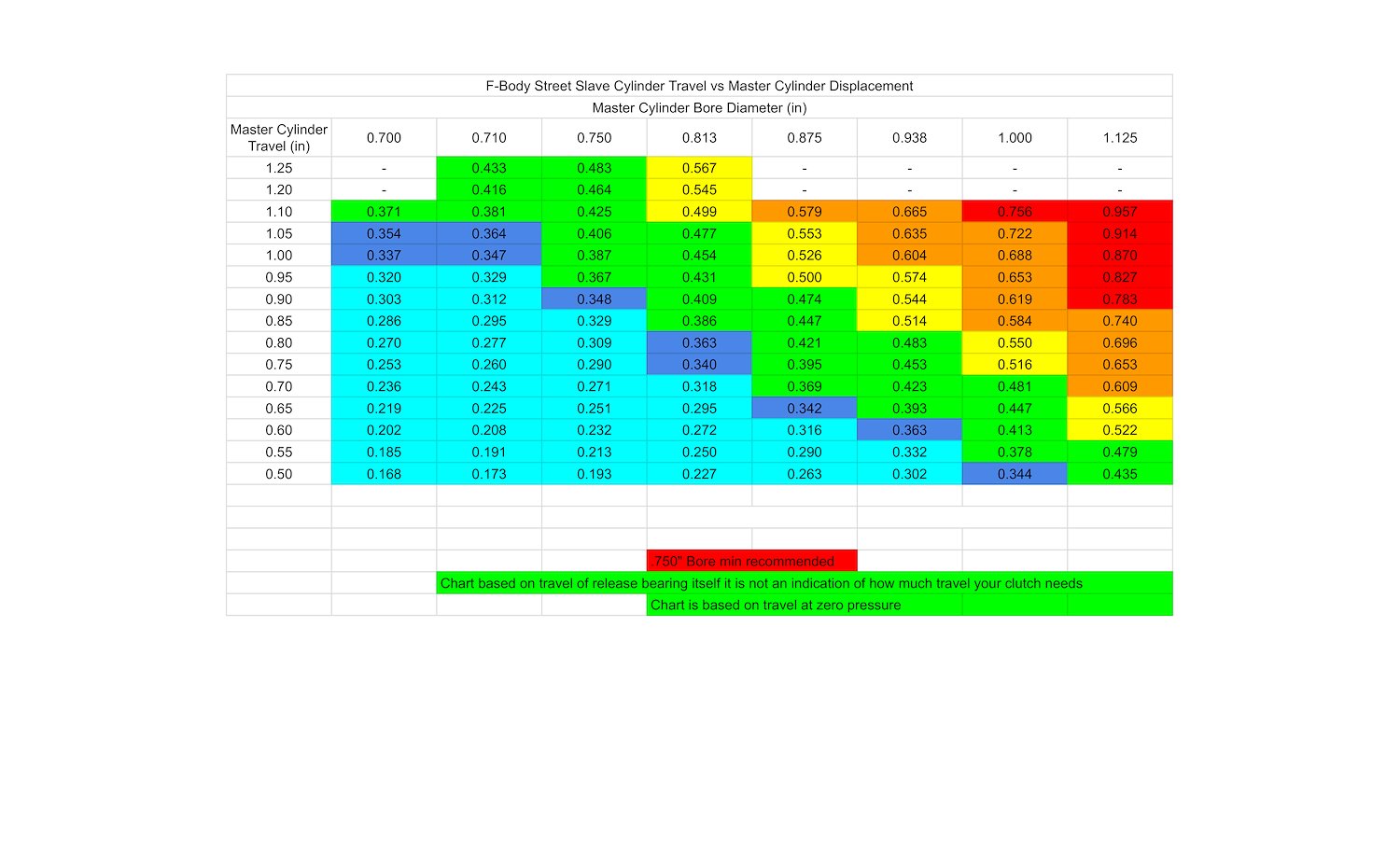

• Compatibility: Fits up to 1.375” diameter 29 spline input shaft and requires a minimum .750” bore master with 1.1” stroke.

Note: Does not fit with McLeod SofLock Clutches
