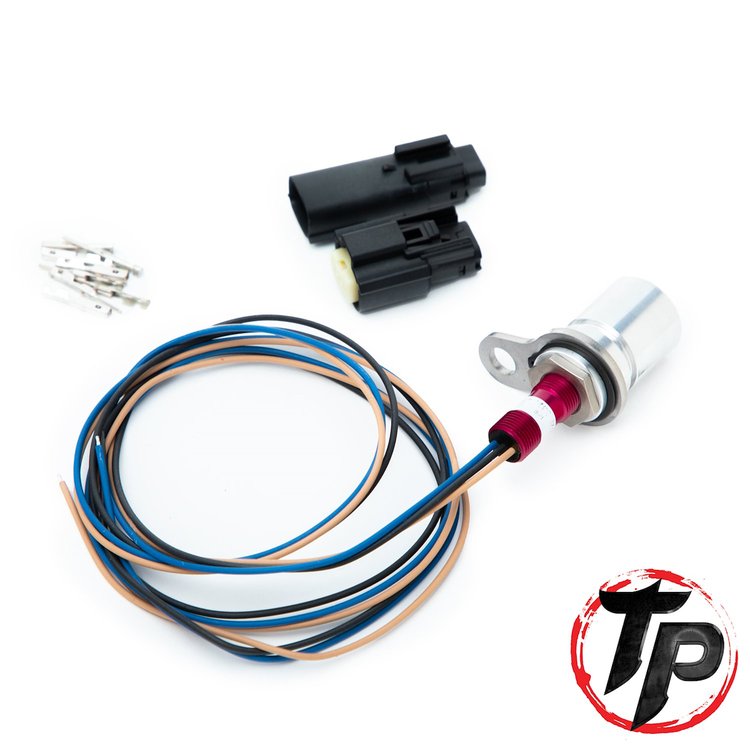

Tick Performance TPSS2 Features:

Our famous Hall Effect Speed Sensor now available for Ford and Ford T56 Magnum XL transmissions. This new sensor has been designed to be a direct physical replacement for your OE speed sensor. It is a direct bolt-in with no adjusting or set-up required. It also takes away the need for a bouncing driveshaft reluctor.

Holley EFI systems, such as the Terminator X and HP systems can only use hall effect sensors for monitoring speed. Tick Performance new sensor will read the stock reluctor ring inside the transmission, meaning no tear-down needed. With a built-in pull-up resistor and mating pigtail included, installation is a breeze and can be done in less than an hour. Machined in-house from billet aluminum and built with superior automotive grade circuitry, this new sensor can stand up to the harshest environments and accurately read speeds in excess of 300mph.

Compatible with Holley, Fueltech, Haltech, etc... systems.

Fitment

• T56 Magnum
• Ford Magnum XL (GM Magnum XL uses TPSS1 Sensor)
• Ford T56/TR6060
• Ford TKX
• Other applications may apply

Specs

• Easy installation and no adjustments needed
• Billet construction
• This sensor is a replacement to the OE Tremec speed sensor.
• Compatible with Holley EFI systems that utilize the Terminator X, Terminator X Max, HP, and Dominator and many other systems.

Wiring Info

• Brown is 12v switched power
• Blue is ground
• Black is signal to ECU

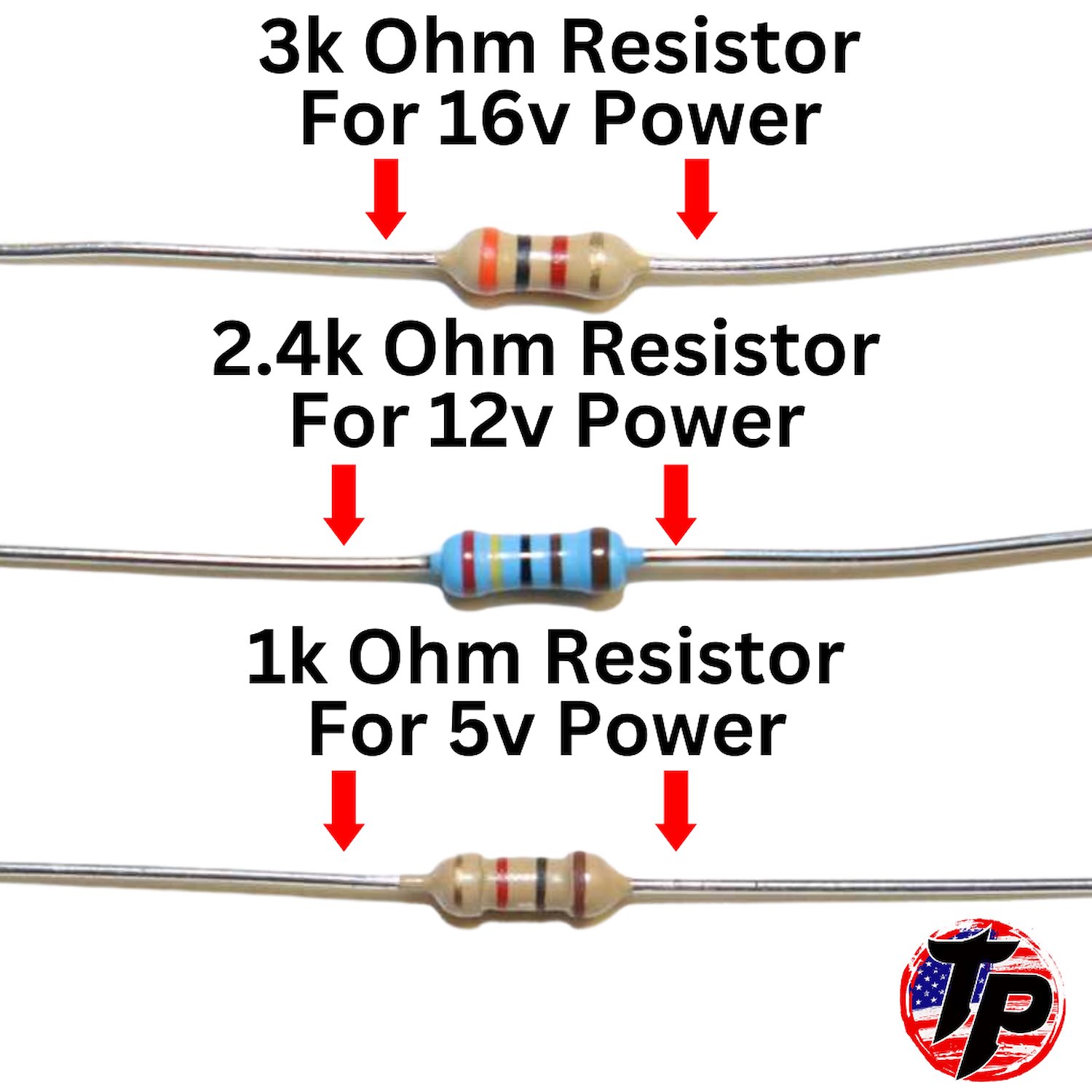

Resistors
